Steel Spring Freezer Door Hinges With White Or Grey ABS Cover 60L 100L 2.6 - 3.0mm Dia.
Product Details:
| Place of Origin: | China |
| Brand Name: | CHUAN TIAN |
| Model Number: | SL-HNG-91 |
| Type: | Freezer Parts |
|---|---|
| Material: | ABS,Steel |
| color of cap: | white;gray |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000 Piece/Pieces |
|---|---|
| Price: | Discuss in letter |
| Packaging Details: | cartons on pallets for export. |
| Delivery Time: | Two weeks |
| Payment Terms: | T/T,Paypal |
| Supply Ability: | 200000 Piece/Pieces per Month |
| Port: | Shanghai |
|
Detail Information |
|||
| High Light: | freezer hinge,refrigerator door hinge |
||
|---|---|---|---|
Product Description
Steel Spring Freezer Door Hinges With White Or Grey ABS Cover 60L 100L 2.6 - 3.0mm Dia.
Good quality: 30000-50000cycles guaranteed
Various designs available
High cost performance
Fast delivery:2 weeks
1. Description: freezer spring hinge SL-HNG-91
2. Frame: steel
3. Frame finish: Zinc alloy plated, or white nickel plated
4. Cover/cap: ABS
5. Color of cap: White, grey etc.
6. For freezer: 60-100L
7. Size: 121*38*24mm
8. Diameter of spring: 2.6 - 3.0mm
9. Cycles of spring: 8, 8.5, 9, 9.5
10. More designs are available
11. Custom orders are warmly welcome.
A freezer hinge includes the following components: fixed in the open side of the freezer door hinge; fixed in the main on one side, through the freezer door hinge and connected to each other and can rotate around the hinge; With the freezer door open and close, spring can be compressed and extension; and adjust the length of the spring.

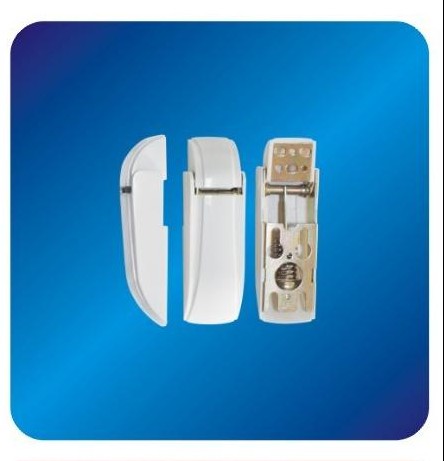

“Used to connect the freezer door to the freezer body,please see the photo”
The spring used on the hinge is much stronger than others’ due to the material 65Mn we used.
The steel bracket can be made in 1mm thick and 1.5mm thick according to customer’s specific requirements.
Founded in 1992, we are a Chinese company specialized in the design, production and sales of freezer and refrigerator parts, exhibition & display products. Our factory is located in Ningbo, covering an area of more than 80,000sqm and employing more than 200 workers.
In 2000, our company passed and attained the ISO9000 quality certificate, which ensures good quality control over all our products.
In 2012, in order to increase our brand popularity and accommodate foreign customers, we were registered as a trading company Shanghai Global Village Industries Limited in Shanghai in charge of foreign and domestic sales and logistics as well as aftersales service, which enjoys very convenient reach to transportation: 20 mins drive from Shanghai Hongqiao International Airport and half an hour drive from Shanghai Pudong International Airport.
With strong development ability and advanced manufacturing facilities, we also welcome OEM orders. We have more than 20 engineers and possess plastic injection machines ranging from 15g to 7000g and stamping machines from 50T to 1000T as well as some supportive testing and inspection equipment.
