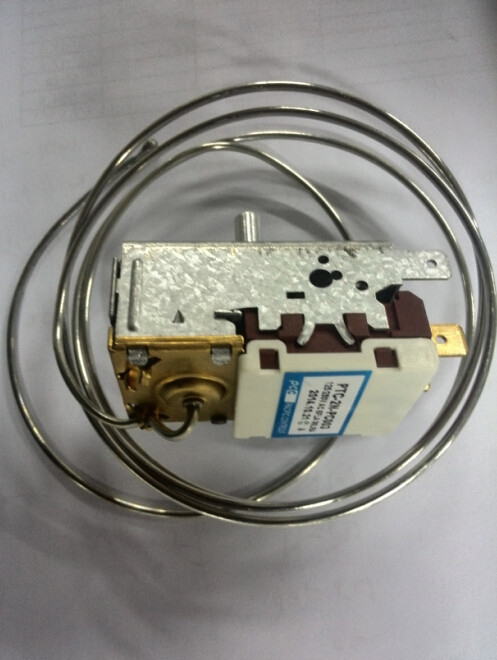

Manual type automatic reset thermostat / refrigerator freezer thermostat
Product Details:
| Place of Origin: | China |
| Brand Name: | PCC |
| Certification: | CUL/TUV/KC certificate |
| Model Number: | PTC-2N-CH001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Packed in carton firstly, and then reinforced with pallet for outer packing |
| Delivery Time: | 35 days after received your deposit |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 300,000pcs per month |
|
Detail Information |
|||
| Product Name: | Thermostat | Application: | Refrigerator, Freezer, Show Case, Water Dispenser |
|---|---|---|---|
| Model Name: | PTC-2N-CH001 | Function: | Maintaining The Set-up Temperature Regularly After Sensing The Temp In The Furnace |
| Temp Range: | -30~20°C | Differential: | 3-35°C |
| Feature: | Small Size/Light-weight/Easy Manipulation, Possible To Change Operating Temp, Length Of Thermostatic Pipe & Fit-up Condition In Accordance With Usage. | ||
| High Light: | capillary tube thermostat,capillary type thermostat |
||
Product Description
Manual type thermostat for Refrigerator / Freezer / Water dispenser
THERMOSTAT (NORMAL / MANUAL TYPE)
The model is mainly used for manual refrigerator / freezer by removing defrost semi-automaticly
with no defrost shaft in the middle, the complicated inside structure and high quality assemblying
make it much more competitive in the market.
General Specifications:
|
Technical Parameter |
Application |
Refrigerator, Freezer, Show case, Water dispenser |
|
Function |
Maintaining the set-up temperature regularly after sensing the temp in the furnace |
|
|
Temp. Range |
-30~20°C |
|
|
Differential |
3~15°C |
|
|
Feature |
Small size/Light-weight/Easy manipulation, possible to change operating temp. length of thermostatic pipe & fit-up condition in accordance with usage. |
|
|
|
|
Product Specification:
|
Model name |
Operating Temp. (°C) |
|||||
|
Cold |
Normal |
Warm |
||||
|
ON |
OFF |
ON |
OFF |
ON |
OFF |
|
|
PTC |
4 |
1.5 |
- |
- |
11 |
- |
|
-20 |
-29 |
-8 |
-14.5 |
8.5 |
3 |
|
