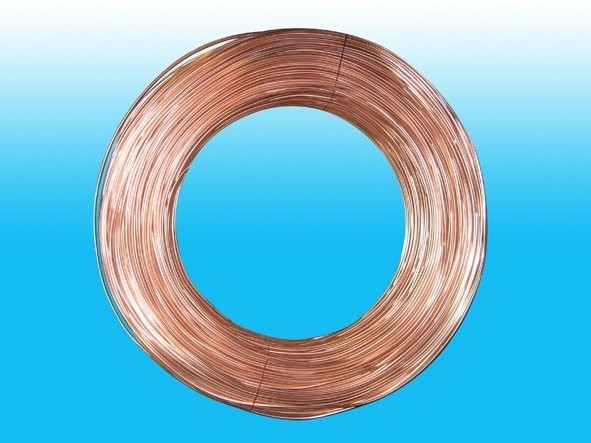

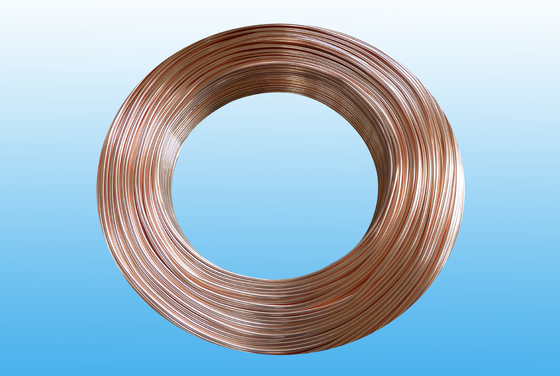

Steel Evaporator Tube 6.35 * 0.65 mm , Low Carbon Copper Coated
Product Details:
| Place of Origin: | Changzhou ,China |
| Brand Name: | wushun |
| Certification: | ISO9001,ISO14001 |
| Model Number: | 6.35*0.65mm |
| Outer Diameter: | 6.35mm |
|---|---|
| Wall Thickness: | 0.65mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 TON |
|---|---|
| Packaging Details: | Plastic cloth coil,wooden box,iron pallet,iron box |
| Delivery Time: | According to quantity about order |
| Payment Terms: | T.T, L/C,DP,OA etc |
| Supply Ability: | 40000 TON each year |
|
Detail Information |
|||
| High Light: | stainless steel pipe,galvanized steel tube |
||
|---|---|---|---|
Product Description
Steel Evaporator Tube 6.35 * 0.65 mm , Low Carbon Copper Coated
surface treatment: copper coated
features:soft and easy to bend
elongation:more than 25%
For Brake & Fuel System
Specifications:
|
Standard |
ASTM A254187-2009 |
|
Thickness |
0.50 - 0.70 mm |
|
Section Shape |
Round |
|
Outer Diameter |
4.00 - 8.00 mm |
|
Place of Origin |
Jiangsu, China (Mainland) |
|
Secondary Or Not |
Non-secondary |
|
Technique |
Cold Drawn |
|
Certification |
ISO9001,ISO14001 |
|
Surface Treatment |
Copper Coated |
|
Alloy Or Not |
Non-alloy |
|
Type |
Welded |
|
Welded Line Type |
Longitudinal |
|
Specification |
8mm, 6.35mm, 6mm,4.76mm,4mm |
|
Outer Diameter |
8mm,6.35mm,6mm,4.76mm,4mm |
|
Length |
cut by length and in coil |
|
Thickness |
0.71mm,0.65mm,0.60mm,0.50mm |
|
Usage |
refrigerator ,freezer ,compressor |
|
Brand Name |
changshun |
|
Grade |
bao steel strap |
|
Standard |
ASME |
|
Diameter tolerance |
±0.08 |
|
Wall thickness tolerance |
±0.08 |
Competitive Advantage:
single wall and double wall steel tube ,can be plain ,copper coating or zn coating outside .quality strictly according country standard ,best quality and completc price .cost is low than other material .
1.Materials: low carbon steel strip
2.Main use: widely used in wire-tube condenser, evaporators, refrigeration, chiller, heaters, freezer etc
3.outer diameter:6.35mm
4.wall thickness: 0.65mm
5. standard: GB/T 24187-2009
6.certification:also passed ISO9001 quality attestation system and ISO14001 Certificate of Enviroment Management System
7.surface treatment: copper coated
8. Features:soft and easy to bend
9.tensile strength: more than 290 Mpa
10.yield strength:more than 180 Mpa
11.elongation:more than 25%
12. place of origin: changzhou city, jiangsu province, China.
13. port of loading:shanghai, China;
14. package:plastic cloth with coils, wooden boxes, iron pallets etc
15. delivery:as contract
16. supply ability:30000 ton per year
17. brand:WUSHUN
Applications:
Steel tube is important part of refrigeration system ,mianly used in refrigerator, freezer ,condenser, evaporator etc,it is made by material low carbon steel strip
