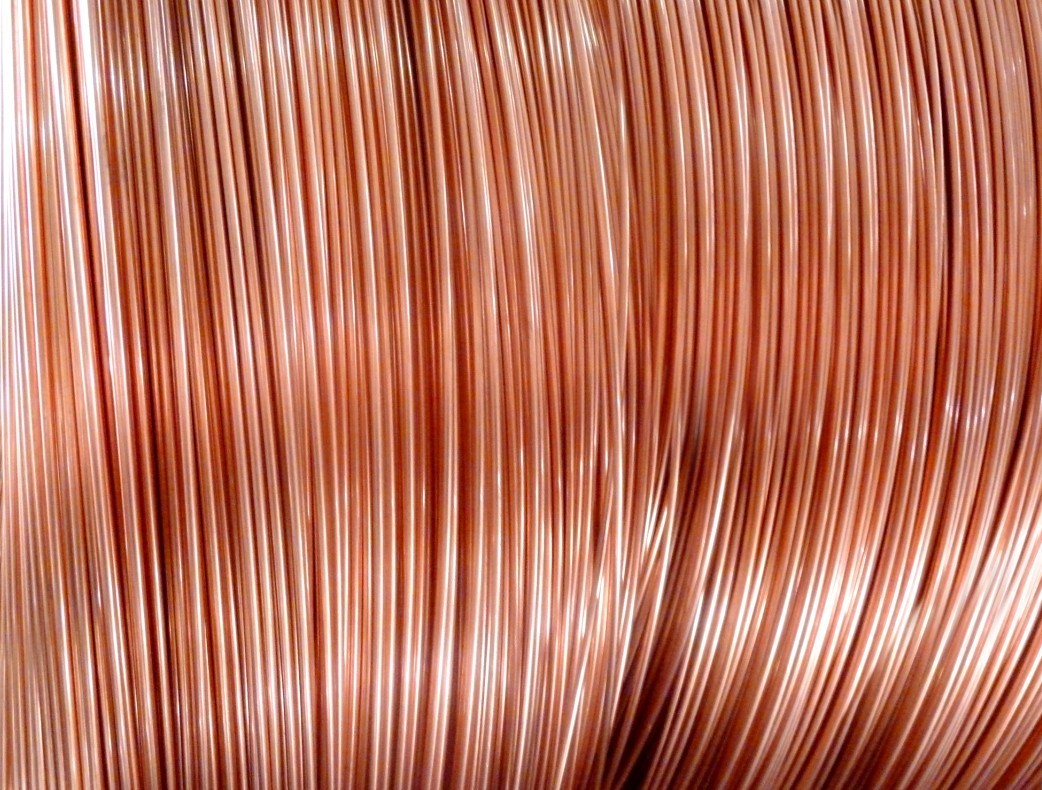

Copper Coated Steel Evaporator Tube 4.76mm × 0.65mm , Longitudinal
Product Details:
| Place of Origin: | Changzhou, China |
| Brand Name: | WUSHUN |
| Certification: | ISO9001,ISO14001 |
| Model Number: | 4.76*0.65mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Ton |
|---|---|
| Packaging Details: | Plastic cloth coil,wooden box,iron pallet etc |
| Delivery Time: | According to quantity about order |
| Payment Terms: | T/T,L/C etc |
| Supply Ability: | 30000 Ton per year |
|
Detail Information |
|||
| High Light: | galvanized steel tube,copper coated steel tube |
||
|---|---|---|---|
Product Description
Copper Coated Steel Evaporator Tube 4.76mm × 0.65mm , Longitudinal
material:low carbon steel strip
main use:widely used in Air,conditioning,Evaporator,Compressor,Condenser etc
outer diameter:4.76mm
wall thickness:0.65mm
standard:GB/T24187-2009
Specifications:
|
Standard |
ASTM A254187-2009 |
|
Thickness |
0.50 - 0.70 mm |
|
Section Shape |
Round |
|
Outer Diameter |
4.76 mm |
|
Place of Origin |
Jiangsu, China (Mainland) |
|
Secondary Or Not |
Non-secondary |
|
Technique |
Cold Drawn |
|
Certification |
ISO9001,ISO14001 |
|
Surface Treatment |
Copper Coated |
|
Alloy Or Not |
Non-alloy |
|
Type |
Welded |
|
Welded Line Type |
Longitudinal |
|
Specification |
4.76*0.65mm |
|
Outer Diameter |
4.76mm |
|
Length |
cut by length and in coil |
|
Thickness |
0.65mm |
|
Usage |
refrigerator ,freezer ,compressor |
|
Brand Name |
changshun |
|
Grade |
bao steel strap |
|
Standard |
ASME |
|
Diameter tolerance |
±0.08 |
|
Wall thickness tolerance |
±0.08 |
Competitive Advantage:
single wall and double wall steel tube ,can be plain ,copper coating or zn coating outside .quality strictly according country standard ,best quality and completc price .cost is low than other material .
1.Materials: low carbon steel strip
2.Main use: widely used in wire-tube condenser, evaporators, refrigeration, chiller, heaters, freezer etc
3.outer diameter:4.76mm
4.wall thickness: 0.65mm
5. standard: GB/T 24187-2009
6.certification:also passed ISO9001 quality attestation system and ISO14001 Certificate of Enviroment Management System
7.surface treatment: copper coated
8. Features: soft and easy to bend
9.tensile strength: more than 290 Mpa
10.yield strength:more than 180 Mpa
11.elongation:more than 25%
12 place of origin: changzhou city, jiangsu province, China.
13 port of loading:shanghai, China;
14 package:plastic cloth with coils, wooden boxes, iron pallets etc
15 delivery:as contract
16 supply ability:30000 ton per year
17 brand:WUSHUN
Applications:
Steel tube is important part of refrigeration system ,mianly used in refrigerator, freezer ,condenser, evaporator etc,it is made by material low carbon steel strip.Price is competitive among the area.
