Commercial Water Cooled Air Conditioning Units , Shell And Tube Type
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | GOLDEN |
| Certification: | CE |
| Model Number: | HLWD70~420SM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, Western Union, L/C, MoneyGram |
| Supply Ability: | 500 units per month |
|
Detail Information |
|||
| Application: | Cooling Or Heating | Cooling Capacity: | 67KW~421KW |
|---|---|---|---|
| Refrigerant: | R22 | Power Supply: | 380V-50HZ-3PH |
| Condenser: | Shell And Tube Type | Heat Recover: | Optional |
| Certificate: | CE | Compressor: | Screw Type * 1 |
| Cooling Type: | Water Cooled | ||
Product Description

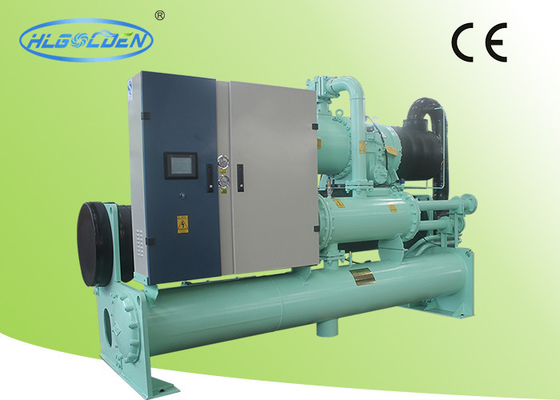

Commercial Water Cooled Air Conditioning Units , Shell And Tube Type
Application:
Hardware, vacuum coating, electroplating, Laser carving, plastic products, electronics, chemical industry, food preservation, ultrasonic cleaning etc. industries.
Features:
1. Chilled water temperature range: -5°C ~ 5°C.
2. Full CE design compliance
3. Good quality and reliable compressor – ensure stable performance and long lifetime.
4. High efficient shell condensers and evaporators -- excellent cooling, quiet with low electric consumption.
5. Safety package - Current-overload protector, high-and-low pressure switches, electronic time delayer, fault display system.
6. Easy to operate - Equipped with Microprocessor and touch screen, temperature controls in °F or °C.
Components Introduction:
- Compressor: COPELAND, HITACHI, DAIKIN, DANFOSS, HANBELL are available.
- Electric component: SCHNEIDER
- Condenser and evaporator: Shell-and-tube type.
Specification:
| Model HLWD～ | 70SM | 90SM | 120SM | 175SM | 205SM | 240SM | 280SM | 340SM | 420SM | |
| 70SMR | 90SMR | 120SMR | 175SMR | 205SMR | 240SMR | 280SMR | 340SMR | 420SMR | ||
| Rated Cooling Capacity | X1000 Kcal/h | 57.4 | 78.2 | 102.7 | 149.5 | 176.2 | 203.7 | 242.6 | 288.8 | 361.6 |
| KW | 67 | 91 | 119 | 174 | 205 | 237 | 282 | 336 | 421 | |
| USRT | 19.0 | 25.8 | 33.9 | 49.4 | 58.3 | 67.4 | 80.2 | 95.5 | 119.6 | |
| Input Power | KW | 23.0 | 30.3 | 38.0 | 55.2 | 62.2 | 72.0 | 87.3 | 101.4 | 124.8 |
| Comp.Input Power*Qty (kw) | 23.0x1 | 30.3x1 | 38.0x1 | 55.2x1 | 62.2x1 | 72.0x1 | 87.3x1 | 101.4x1 | 124.8x1 | |
| Comp.Current (A) | 38.6 | 50.9 | 63.8 | 92.8 | 104.5 | 121.0 | 146.8 | 170.4 | 209.9 | |
| Power Supply | 3 ɸ-380V-50HZ | |||||||||
| Protection Device | Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temperature protection, Low&High pressure protection, Low temp protection, Water flow protection. |
|||||||||
| Number of Refrigeration Circuit | 1 | |||||||||
| Capacity Control (%) | 0,66,100 | |||||||||
| Refrigerant Charge (kg) | 21 | 28 | 35 | 49 | 55 | 62 | 75 | 90 | 110 | |
| Condenser | Shell and Tube Type | |||||||||
| Water Side Max Pressure (MPa) | 1 | |||||||||
| Dia.of Pipe to Condenser (inch) | 2" | 2-1/2" | 3" | 3" | 3" | 4" | 4" | 5" | 5" | |
| Cooling Water Flow (m3/h) | 15.4 | 20.8 | 27.1 | 39.4 | 45.9 | 53.1 | 63.5 | 75.2 | 93.8 | |
| Condenser Water Pressure drop (kPa) |
37 | 42 | 41 | 47 | 47 | 45 | 45 | 46 | 46 | |
| Evaporator | Shell and Tube Type | |||||||||
| Water Side Max Pressure (MPa) | 1 | |||||||||
| Dia.of Pipe to Evaporator (inch) | 2" | 2-1/2" | 3" | 3" | 3" | 4" | 4" | 4" | 5" | |
| 55% Glycol Flow Volume (m3/h) | 12.5 | 17.0 | 22.3 | 32.5 | 38.3 | 44.3 | 52.8 | 62.8 | 78.6 | |
| Evaporator Water Pressure drop (kPa) |
25 | 32 | 37 | 52 | 63 | 70 | 73 | 49 | 83 | |
| Running Noise dB(A) | 73.1 | 73.7 | 74.8 | 75.0 | 75.0 | 75.0 | 75.0 | 75.0 | 75.0 | |
| Total weight (Kg) | 1040 | 1070 | 1260 | 1600 | 1690 | 1920 | 2150 | 2500 | 2850 | |
| Running Weight (Kg) | 1140 | 1180 | 1420 | 1760 | 1860 | 2100 | 2360 | 2780 | 3140 | |
Heat Recovery:
| Model HLWD～ | 70SMR | 90SMR | 120SMR | 175SMR | 205SMR | 240SMR | 280SMR | 340SMR | 420SMR | |
| Refrigerant charge(kg) | 21 | 28 | 35 | 49 | 58 | 65 | 78 | 95 | 115 | |
| Heat Reclaimed Volume | X1000 Kcal/h | 17.2 | 23.4 | 30.8 | 44.9 | 52.9 | 61.1 | 72.8 | 86.6 | 108.5 |
| KW | 20 | 27 | 36 | 52 | 61 | 71 | 85 | 101 | 126 | |
| USRT | 5.7 | 7.8 | 10.2 | 14.8 | 17.5 | 20.2 | 24.1 | 28.7 | 35.9 | |
| Heat Recoverer | Shell and Tube Type | |||||||||
| Water Side Max Pressure (MPa) | 1 | |||||||||
| Dia of pipe to Heat Recoverer(inch) | 1" | 1-1/2" | 1-1/2" | 1-1/2" | 2" | 2" | 2" | 2" | 3" | |
| Reclaimed Water Flow(m3/h) | 3.4 | 4.7 | 6.2 | 9.0 | 10.6 | 12.2 | 14.6 | 17.3 | 34.7 | |
| Heat recovery Unit Water Pressure drop(kPa) | 21 | 24 | 23 | 27 | 27 | 26 | 26 | 26 | 32 | |
| Total weight (Kg) | 1040 | 1070 | 1260 | 1600 | 1740 | 2000 | 2230 | 2580 | 3920 | |
| Running Weight (Kg) | 1140 | 1180 | 1420 | 1760 | 1910 | 2180 | 2440 | 2860 | 4490 | |
