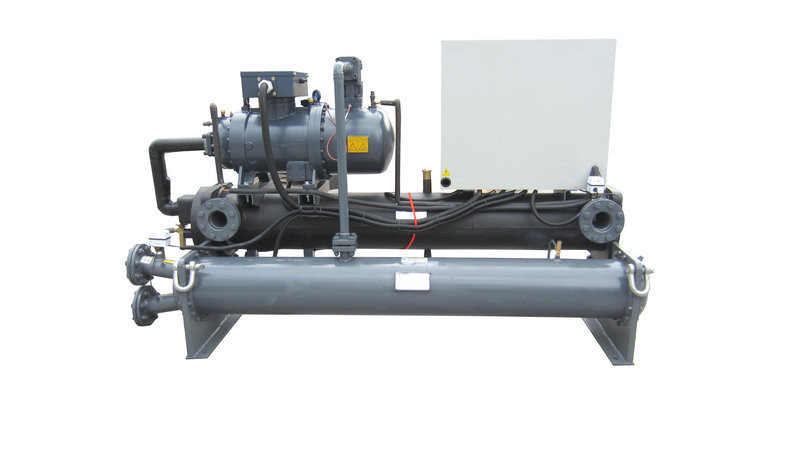

Semi-enclosed Compressor Water Cooled Screw Chillers With 44KW Input Power
Product Details:
| Place of Origin: | China |
| Brand Name: | Aode |
| Certification: | ISO,CE |
| Model Number: | AC-200WD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Packaging Details: | Protective/air bubble film, Wooden case. As client’s requirement. |
| Delivery Time: | Within 20days after receiving deposit |
| Payment Terms: | 30% T/T in advance, 70% balance before we delivery |
| Supply Ability: | 500pcs/month |
|
Detail Information |
|||
| Product Name: | Water-Cooled Screw Chiller | Brand Name: | AODE |
|---|---|---|---|
| Application: | Die Casting, Pringting, Extruder | Certification: | CE, ISO |
| Compressor Type: | Semi-enclosed Screw-type | Power Input: | 44KW |
| Power Supply: | 3N-50HZ-380V | Temperature Range: | 7-35℃ |
| Theory: | Water Cooled | ||
| High Light: | water cooled chiller,water cooled chillers |
||
Product Description
Semi-enclosed Compressor Water Cooled Screw Chiller with 44KW Input Power
Quick Detail:
1. Power input:44KW
2. Temperature controlled 7-35℃, precision controlled ±2℃
3. Certification:CE & ISO
4. Compressor type: Semi-enclosed screw-type
5. Refrigerating capacity:172000Kcal/h
6. Warranty:1 year
Description:
-
Compressor high and low voltage protection, internal overheating protection
-
Low water flow alarm devices: Low water temperature anti-icing alarm
-
Compressor imported from Europe, America and Japan(Hanbell Levin Beverly)
-
Oxygen-free welding from refrigeration system, reduce the oxides and smooth the surface
-
Denmark Danfoss and USA Eco throttle components
-
Denmark Danfoss solenoid valve filter
-
Stainless steel plate, coil type, shell and tube, finned high efficiency heat exchanger
-
RS485 communication function for automated management(optional)
-
Brands OMRON, FUJI, TE, LG, MOELLER, ABB and WEST for electric appliances
-
Control mode: imported microcomputer or PLC(optional)
-
Perfect safety protection, fault display, easy repair and maintenance even without professionals
-
High-efficiency evaporator and condenser which can save energy by more than 30%
-
Temperature control range:7-35℃, Temperature control accuracy:±2℃
Specifications:
|
ITEM |
UNIT |
AC-200WD |
|
|
Refrigerating capacity |
Kcal/h |
172000 |
|
|
|
KW |
200 |
|
|
Input water |
KW |
44 |
|
|
Maximum Running Current |
A |
76 |
|
|
Energy adjust range |
% |
100-75-50-25-0 |
|
|
Power supply |
|
3N-50HZ-380V |
|
|
R22 Refrigerant |
Filling Volume |
kg |
17×2 |
|
|
Control mode |
|
Thermostatic External valve |
|
Compressor |
Model |
|
Semi-enclosed screw-type |
|
|
Power |
Kw |
22×2 |
|
Evaporator |
Model |
|
Shell and Tube |
|
|
Chilled water flow |
M3/h |
34.4 |
|
|
Water resistance |
Kpa |
39 |
|
|
Water inlet/outlet diameter |
DN |
80.0 |
|
Condenser |
Model |
|
Shell and Tube |
|
|
Chilled water flow |
M3/h |
44.7 |
|
|
Water resistance |
Kpa |
45 |
|
|
Water inlet/outlet diameter |
DN |
80 |
|
Protecting equipment |
|
High/Low Pressure switch, Anti-frost Protector, Fusible Plug, Overload Protector, Motor Overheat Protector, Automatic Temperature Sensitive Switch, Anti-phase Protector |
|
|
Size(L×W×H) |
mm |
2900×750×1900 |
|
|
Weight |
kg |
2150 |
|
|
Running Weight |
Kg |
2350 |
|
Competitive Advantage:
-
Our core competitiveness:advance technology,the pioneer of TCU industry, Convenient and efficient nationwide service network
-
Excellent R&D team
-
Customization thick copper pipe 1.0-1.2
-
Our core concept:Innovation, high-quality, integrity, service, focus
-
High density heat insulation cotton and aluminum foil
-
Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and WEST
-
The thickness of our machine rack is 1.2mm
-
We have the production certification organic heat transfer material heater
Applications:
Aluminium Alloy: Car accessories
Magnesium alloy: Communication device, navigation
Hot Rolling Machine: Calender Rolls, Wood Presses, Laminating Presses,Molding Presses, Rubber Presses, Jacketed Vessels, Reactors, Heat Exchangers, Mixers, Printing Machines, Asphalt, Vulcanizing Presses.
Die casting,plastic Injection molding, light guide plates, connectors, Chemical engineering, Shoe materials, Pringting and dyeing, Drying and banburying.
