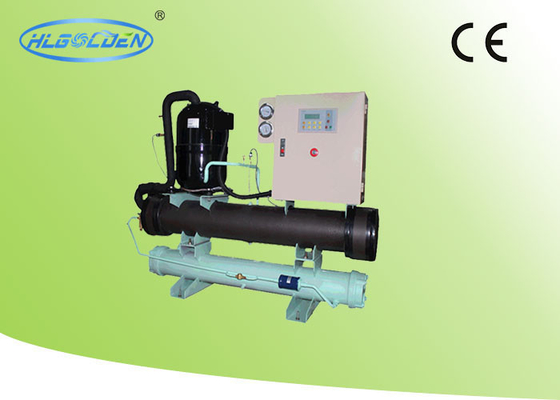

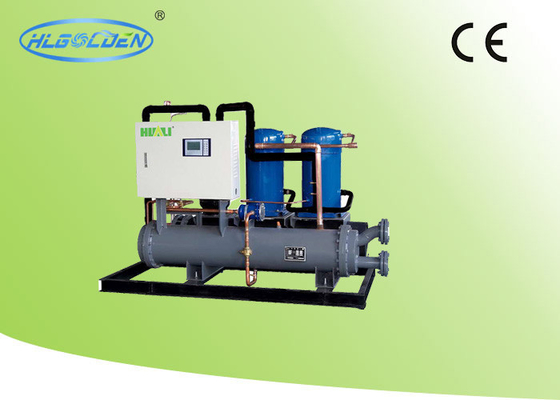

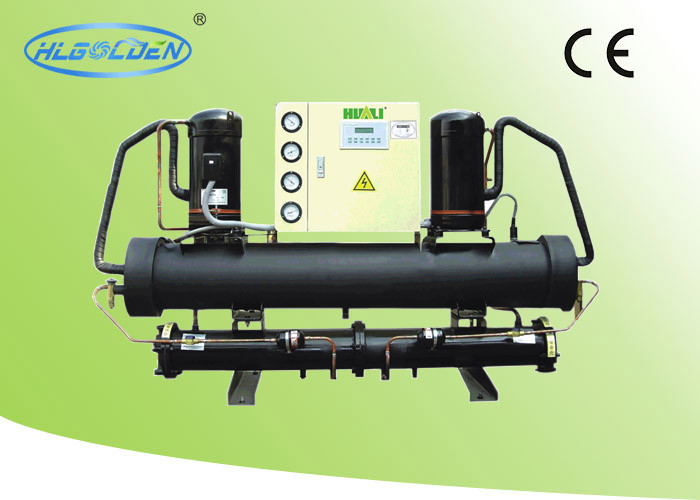

R407C , R134A Drinking Water Cooled Water Chiller with Open Type Compressor
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | GOLDEN |
| Certification: | CE |
| Model Number: | HLLW-30DOI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 10 working days after received your payment |
| Payment Terms: | T/T, Western Union, L/C, MoneyGram |
| Supply Ability: | 500pcs per month |
|
Detail Information |
|||
| Product Name: | Water Cooled Water Chiller | Application: | Cooling Or Heating |
|---|---|---|---|
| Cooling Capacity: | 104 Kw | Power Supply: | 380v-50hz-3ph |
| Refrigeration: | R22/R407C/R410A | Standard: | CE |
| Installation: | Floor Standing | ||
| High Light: | Industrial Water Chiller Units,Recirculating Water Chiller |
||
Product Description
R407C , R134A Drinking Water Cooled Water Chiller with Open Type Compressor
1. Technical parameter:
|
water cooled industrial chiller |
||||||||||||
|
Model HLLW ～ |
03SOI |
05SOI |
08SOI |
10SOI |
12.5SOI |
15SOI |
20DOI |
25DOI |
30DOI |
40TOI |
45TOI |
|
|
Rated Cooling Capacity |
×1000 kcal/h |
8.8 |
14.1 |
22.9 |
30.4 |
35.4 |
44.7 |
60.7 |
70.9 |
89.4 |
106.3 |
134.1 |
|
KW |
10.2 |
16.4 |
26.6 |
35.3 |
41.2 |
52.0 |
70.6 |
82.4 |
104.0 |
123.6 |
156.0 |
|
|
Input Power (KW) |
2.85 |
4.3 |
6.3 |
7.9 |
9.3 |
11.7 |
15.1 |
17.1 |
22.6 |
25.6 |
32.8 |
|
|
Comp. Input Power×Qty. (KW) |
2.1 |
3.55 |
5.2 |
6.8 |
7.8 |
10.2 |
6.8×2 |
7.8×2 |
10.2×2 |
7.8×3 |
10.2×3 |
|
|
Chilled Water Pump Power (KW) |
0.75 |
0.75 |
1.1 |
1.1 |
1.5 |
1.5 |
1.5 |
1.5 |
2.2 |
2.2 |
2.2 |
|
|
Comp. Current (A) |
5.3 |
8.4 |
12.6 |
16.2 |
18.1 |
22.8 |
31.1 |
33.4 |
44.2 |
50.2 |
64.2 |
|
|
Power Supply |
3φ-380V-50HZ,60HZ |
|||||||||||
|
Safety Protection |
Phase reversion protection, Phase lack protection, Overload current protection, Low & High pressure protection, Low temp. protection, Water flow protection, |
|||||||||||
|
Number of Refrigeration Circuit |
1 |
2 |
3 |
|||||||||
|
Capacity Control (%) |
0, 100 |
0, 50, 100 |
0, 33, 66, 100 |
|||||||||
|
Refrigerant |
R22, R407C, R410A |
|||||||||||
|
Condenser |
Shell and Tube Type |
|||||||||||
|
Water Side Max Pressure (MPa) |
1 |
|||||||||||
|
Dia. of Pipe to Condenser (inch) |
1" |
1-1/2" |
1-1/2" |
1-1/2" |
2" |
2" |
2" |
2" |
2-1/2" |
2-1/2" |
2-1/2" |
|
|
Cooling Water Flow (L/m) |
35.3 |
57.2 |
91.2 |
120.6 |
140.5 |
178.3 |
225.3 |
257.4 |
355.4 |
386.1 |
533.1 |
|
|
Condenser Water Pressure drop (kPa) |
21 |
22 |
23 |
29 |
31 |
41 |
56 |
56 |
58 |
55 |
56 |
|
|
Evaporator |
Pipe Coil Type |
Shell and Tube Type |
||||||||||
|
Water Side Max Pressure (MPa) |
- |
1 |
||||||||||
|
Dia.of Pipe to Evaporator (inch) |
1" |
1" |
1-1/2" |
1-1/2" |
2" |
2" |
2" |
2" |
2-1/2" |
2-1/2" |
2-1/2" |
|
|
Chilled Water Flow (L/m) |
29.2 |
47.0 |
76.4 |
101.2 |
118.1 |
149.1 |
202.4 |
236.2 |
298.1 |
354.3 |
447.1 |
|
|
Evaporator Water Pressure drop (kPa) |
- |
17 |
23 |
28 |
30 |
28 |
28 |
32 |
32 |
31 |
||
|
Running Noise dB(A) |
58 |
60 |
70 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
|
|
Total weight (Kg) |
100 |
130 |
360 |
390 |
430 |
480 |
640 |
690 |
780 |
930 |
1080 |
|
|
Dimension L×W×H |
850× 550×1130 |
1400× 800×1050 |
1700× 850×1100 |
2000× 900×1100 |
2000× 1180×1100 |
2450× 1050×1120 |
||||||
Applications:
Plastic Injection mold machine
HUALI chiller can accurately control the temperature of mold which can improve the quality and production
rate.
Machinery Industry
HUALI chiller can cool down the oil for the machine and stabilize the oil temperature and pressure. It’ll extend
the useful life of oil. And it can also improve mechanical lubrication efficiency.
Electroplating Industry
The temperature of electroplate can be controlled by our chiller. It can improve the density and smooth of
electroplate and production efficiency.
Food & Drink Processing Industry
The temperature of processed food and drink will be too high to be packaged.HUALI chiller can cool it down
through food grade stainless steel heat exchanger.
