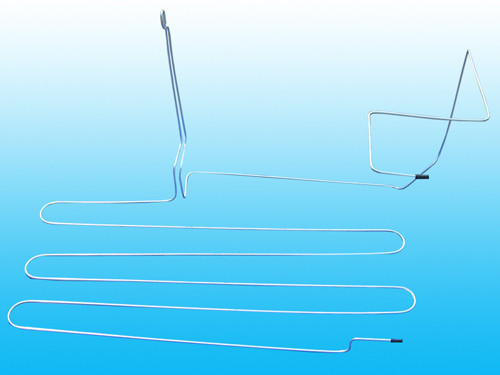

Soft And Easy To Bend Condenser Tube 6.35 * 0.7 mm No Coated
Product Details:
| Place of Origin: | Changzhou ,China |
| Brand Name: | WUSHUN |
| Certification: | ISO9001,ISO14001 |
| Model Number: | 6.35 *0.7mm |
| Outer Diameter: | 6.35mm |
|---|---|
| Wall Thickness: | 0.7mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 TON |
|---|---|
| Packaging Details: | Plastic cloth coil,wooden box,iron pallet,iron box |
| Delivery Time: | According to quantity about order |
| Payment Terms: | T.T ,L/C, D/P, O/A etc |
| Supply Ability: | 30000TON each year |
|
Detail Information |
|||
| High Light: | heat exchanger tubes,Refrigeration Tube |
||
|---|---|---|---|
Product Description
Soft And Easy To Bend Condenser Tube 6.35 * 0.7 mm No Coated
low carbon steel strip
Section Shape:Round
Application:refrigerator, freezer
standard: GB/T 24187-2009
Applications:
Welded tube is important part of refrigeration system ,mianly used in refrigerator, freezer ,condenser, evaporator etc,it is made by material low carbon steel strip.
1.materials: low carbon steel strip
2.main use: widely used in wire-tube condenser, evaporators, refrigeration, chiller, heaters, freezer etc
3.outer diameter:6.35mm
4.wall thickness: 0.7mm
5. standard: GB/T 24187-2009
6.certification:also passed ISO9001 quality attestation system and ISO14001 Certificate of Environment Management System
7.surface treatment: no coated
8. features: soft and easy to bend
9.tensile strength: more than 290 Mpa
10.yield strength:more than 180 Mpa
11.elongation:more than 25%
12. place of origin: changzhou city, jiangsu province, China
13. port of loading:shanghai, China
14. package:plastic cloth with coils, wooden boxes, iron pallets etc
15. delivery:as contract
16.payment terms:T/T,L/C etc
17. supply ability:30000 ton per year
18. brand:WUSHUN
Specifications:
|
specification |
dimensional tolerance |
Mechanical properties |
|||
|
Diameter tolerance |
Wall thickness tolerance |
tensile strength |
yield strength |
elongation |
|
|
condenser tube 6.35 *0.7mm |
±0.08 |
±0.08 |
≥290Mpa |
≥180Mpa |
≥25% |
Competitive Advantage:
Normally used on condenser producing ,corrosion resistance good ,soft and easy to bend ,easy to make shape .Zn coated outside ,size is complete ,best quality and best price ,quality according to the national standard.
