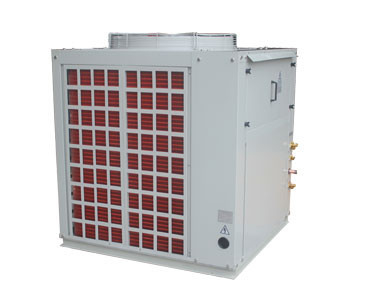

Anti - Corrosion Outdoor Air Cooled Condensing Unit With Copper Fins Condenser
Product Details:
| Place of Origin: | China |
| Brand Name: | Head-Power |
| Certification: | CE/ISO |
| Model Number: | SW10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Plastic film+ wooden case |
| Delivery Time: | 25 working days after receiving deposit payment |
| Payment Terms: | T/T, 30%deposit & 70%before delivery |
| Supply Ability: | 3,000pcs per year |
|
Detail Information |
|||
| Product Name: | Outdoor Condensing Unit | Application: | Outdoor |
|---|---|---|---|
| Cooling Capacity: | 26kw | Refrigerant: | R22 |
| Compressor: | Hitachi/Copeland | Power Supply: | 380V/3PH/50Hz |
| Condenser: | Copper Fins | Material: | Stainless Steel 304 |
| High Light: | split system air conditioner,split units air conditioners |
||
Product Description
Air Cooled Outdoor Condensing Unit With Copper Fins Condenser, Anti - Corrosion
Specifications:
|
Model |
|
SW05 |
SW06 | SW08 | SW10 | SW12 | SW15 | |
|
Cooling capcity |
kW |
13 |
15.6 | 20.8 | 26 | 31.2 | 39 | |
| Heating capacity | kW | 13.6 | 16.5 | 22.1 | 27.5 | 33 | 41.5 | |
|
Power supply |
|
380V/3PH/50Hz |
||||||
|
Refrigerant |
|
R22 |
R22 | R22 | R22 | R22 | R22 | |
|
Compressor |
Type |
|
Hermetic Scroll Compressor |
|||||
|
Power |
kW |
3.95 |
4.8 | 6.8 | 7.9 | 9.6 | 11.8 | |
|
Quantity |
pcs |
1 |
1 | 2 | 2 | 2 | 3 | |
|
Condensing fan |
Type |
|
Low noise axial type |
|||||
|
Fan quantity |
|
1 |
1 | 1 | 1 | 1 | 1 | |
|
Motor power |
kW |
0.25 |
0.25 | 0.55 | 0.55 | 0.55 | 0.75 | |
|
Drive method |
|
Direct drive |
||||||
| Condenser | Type | Copper tubes with copper fins | ||||||
| Dimensions(L*W*H) | mm |
840*840 *950 |
840*840 *950 |
940*940 *1150 |
1050*1050 *1150 |
1150*1050 *1150 |
1250*1200 *1300 |
|
| Net weight | kg | 130 | 140 | 210 | 240 | 360 | 380 | |
|
Model |
|
SW18 |
SW20 | SW25 | SW30 | SW36 | |
|
Cooling capcity |
kW |
46.8 |
52 | 65 | 78 | 93.6 | |
|
Power supply |
|
380V/3PH/50Hz |
|||||
|
Refrigerant |
|
R22 |
R22 | R22 | R22 | R22 | |
|
Compressor |
Type |
|
Hermetic Scroll Compressor |
||||
|
Power |
kW |
14.8 |
15.8 | 19.2 | 23.1 | 28.8 | |
|
Quantity |
pcs |
3 |
2 | 2 | 3 | 3 | |
|
Condensing fan |
Type |
|
Low noise axial type |
||||
|
Fan quantity |
|
2 |
2 | 2 | 2 | 2 | |
|
Motor power |
kW |
1.5 |
1.5 | 1.5 | 2.2 | 3 | |
|
Drive method |
|
Direct drive |
|||||
| Condenser | Type | Copper tubes with hydrophilic aluminium fins | |||||
| Dimensions(L*W*H) | mm |
1900*1050 *1200 |
2250*1050 *1150 |
2300*1100 *1250 |
2350*1100 *1500 |
2300*1250 *1250 |
|
| Net weight | kg | 450 | 480 | 650 | 750 | 860 | |
Features:
1. Flexbile hermetic scroll compressor, high and steady work performance, Hitachi, Copeland, Sanyo, etc.
2. Low noise axial condensing fan, motor protection IP54, Class F .

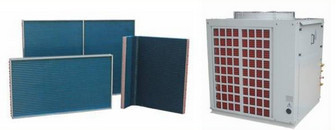

3. Anti-corrosion copper tubes with copper fins condenser, SS304 frame.
4. Galvanized steel sheet, outside powder coated, anti-corrosion and weather proof type condenser.

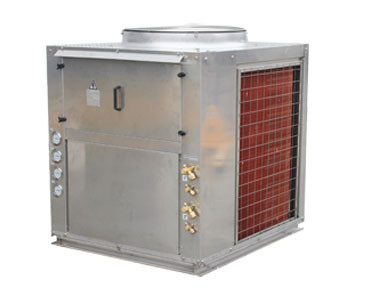

Stainless steel sheet casing also available for easy corrosion area.
5. For standard model, compressors are installed in condensing unit.
6. Optional refrigerant: R134a, R407C.
7. Wide cooling capacity range: 13~156kW
Advantages:
1. Customized material for clients, copper fins condenser, stainless steel sheet.
2. Matched with ducted type indoor unit, free blow type indoor unit, ceiling mounted type indoor unit, DX air handling unit.
