Gea Kuba Ceiling Type refrigeration evaporator for Supermarket Cold storage
Product Details:
| Place of Origin: | German |
| Brand Name: | GEA KUBA |
| Certification: | CE, CCC, RoHS, UL |
| Model Number: | DPA/DPB/SPA series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box |
| Delivery Time: | 7-10 working days after received your payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Installation: | Wall Mounted | Power Supply: | Electric |
|---|---|---|---|
| Application: | Food Processing | Fans Species: | Single-speed Fan |
| Export Martets: | Global | Type: | Evaporator |
| High Light: | refrigerator evaporator,evaporator in refrigeration system |
||
Product Description

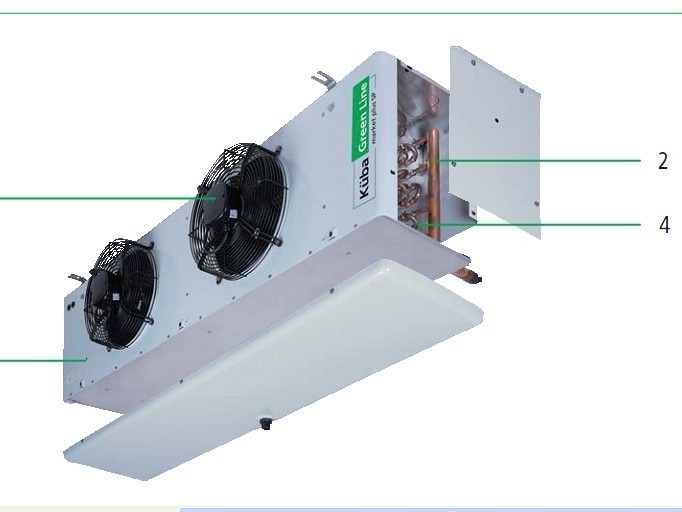

Gea Kuba Ceiling Type refrigeration evaporator Air Cooler for Cold Storage, Cold Room, Supermarket
Specifications:
1,The high efficient coils are made from high equality copper tubes and special aluminum fins.
2,Heat Exchangers are supplied clean and tested under a pressure of 30 bars.
3,The casing----White power coated aluminum, corrosion strength, impact resistance, and does not produce poliuting debris.
4,The fan motors-----All with high quality axial fan motors with high satety standards fitted well to the unit casing with an anti-vibration system.
5,Defrost heating----Provided by stainless steel heater elements covered by the aluminum tubes. Located in the finned pack and in the drain pan.
6,Electrical parts and wiring-----are connected to an earth terminal, carried out in junction box with access holes equipped with water-proof cable grands.
7,All material are selected carefully for long-term reliability.
8,A-level agent of German GEA kuba evaporator for cold storage, supermarket etc.
More Models please check as below:
| Model | Rated Capacity (kw) |
External Surface (m2) |
Air Flow (m3/h) |
Air Throw (m) |
Tube Volume (dm3) |
Connection (Φmm) |
|
| t=8 DT1=8K | t=25 DT1=7K | Inlet | |||||
| DPA 031C | 3,69 | 5,41 | 16,3 | 1720 | 2x11 | 3,4 | 10* |
| DPA 041C | 4,26 | 6,25 | 24,3 | 1620 | 2x9 | 5,1 | 10* |
| DPA 032C | 7,38 | 10,8 | 32,6 | 3440 | 2x12 | 6,8 | 10* |
| DPA 042C | 8,52 | 12,5 | 48,6 | 3240 | 2x10 | 10,2 | 10* |
| DPA 033C | 11,1 | 16,3 | 48,9 | 5160 | 2x13 | 10,2 | 10* |
| DPA 043C | 12,8 | 18,8 | 72,9 | 4860 | 2x11 | 15,3 | 15* |
| DPB 031C | 2,98 | 4,37 | 11,0 | 1850 | 2x11 | 3,4 | 10* |
| DPB 041C | 3,72 | 5,46 | 16,4 | 1770 | 2x9 | 5,1 | 10* |
| DPB 032C | 5,96 | 8,75 | 22,0 | 3700 | 2x12 | 6,8 | 10* |
| DPB 042C | 7,44 | 10,9 | 32,8 | 3540 | 2x10 | 10,2 | 10* |
| DPB 033C | 8,94 | 13,1 | 33,0 | 5550 | 2x13 | 10,2 | 10* |
| DPB 043C | 11,2 | 16,4 | 49,2 | 5310 | 2x11 | 15,3 | 15* |
| DPB 034C | 11,9 | 17,5 | 44,0 | 7400 | 2x14 | 13,6 | 15* |
| DPB 044C | 14,9 | 21,8 | 65,6 | 7080 | 2x12 | 20,4 | 22* |
| Model | Rated Capacity (kw) |
External Surface (m2) |
Air Flow (m3/h) |
Air Throw (m) |
Tube Volume (dm3) |
Connection (Φmm) |
Sound dB (A) |
Blade | ||
| t=8℃ DT1=8K | t=25℃ DT1=7K | Inlet | Outlet | |||||||
| SPA 011D | 1,65 | 2,44 | 6,9 | 820 | 4 | 1,4 | 10 | 12 | 63 | 1 x 250 |
| SPA 021D | 1,80 | 2,65 | 9,1 | 760 | 4 | 1,9 | 10 | 12 | 63 | 1 x 250 |
| SPA 031D | 2,65 | 3,93 | 10,3 | 1380 | 6 | 2,1 | 10 | 18 | 70 | 1 x 300 |
| SPA 041D | 3,00 | 4,44 | 13,6 | 1300 | 5 | 2,8 | 12* | 22 | 70 | 1 x 300 |
| SPA 051D | 6,05 | 8,98 | 20,5 | 3020 | 8 | 4,2 | 12* | 28 | 77 | 1 x 400 |
| SPA 061D | 6,83 | 10,1 | 30,6 | 2720 | 7 | 6,3 | 12* | 28 | 77 | 1 x 400 |
| SPA 071D | 11,3 | 16,8 | 36,3 | 5800 | 17 | 7,6 | 15* | 35 | 83 | 1 x 500 |
| SPA 081D | 13,1 | 19,3 | 54,2 | 5270 | 16 | 11,1 | 15* | 35 | 83 | 1 x 500 |
| SPA 022D | 3,62 | 5,34 | 18,2 | 1520 | 6 | 3,6 | 12* | 22 | 66 | 2 x 250 |
| SPA 032D | 5,33 | 7,90 | 20,6 | 2760 | 8 | 4,1 | 12* | 28 | 73 | 2 x 300 |
| SPA 042D | 6,02 | 8,92 | 27,3 | 2600 | 7 | 5,5 | 12* | 28 | 73 | 2 x 300 |
| SPA 052D | 11,9 | 17,7 | 40,9 | 6040 | 12 | 8,2 | 15* | 35 | 80 | 2 x 400 |
| SPA 062D | 13,4 | 19,7 | 60,9 | 5440 | 11 | 12,1 | 15* | 35 | 80 | 2 x 400 |
| SPA 072D | 21,7 | 31,9 | 72,7 | 11600 | 22 | 14,3 | 15* | 42 | 86 | 2 x 500 |
| SPA 082D | 25,7 | 37,9 | 108,3 | 10540 | 21 | 21,5 | 22* | 42 | 86 | 2 x 500 |
| SPA 023D | 5,51 | 8,16 | 27,3 | 2280 | 8 | 5,3 | 12* | 28 | 68 | 3 x 250 |
| SPA 043D | 8,96 | 13,3 | 40,9 | 3900 | 10 | 8,0 | 15* | 35 | 75 | 3 x 300 |
| SPA 053D | 18,2 | 27,0 | 61,4 | 9060 | 15 | 12,0 | 22* | 42 | 82 | 3 x 400 |
| SPA 063D | 20,6 | 30,4 | 91,5 | 8160 | 13 | 18,0 | 22* | 42 | 82 | 3 x 400 |
| SPA 073D | 33,4 | 49,5 | 109,2 | 17400 | 26 | 21,3 | 22* | 54 | 88 | 3 x 500 |
| SPA 083D | 38,3 | 56,3 | 162,7 | 15810 | 24 | 32,2 | 22* | 54 | 88 | 3 x 500 |
| SPA 024D | 7,26 | 10,7 | 36,3 | 3040 | 9 | 7,1 | 12* | 28 | 69 | 4 x 250 |
| SPA 044D | 11,7 | 17,2 | 54,5 | 5200 | 12 | 10,6 | 15* | 35 | 76 | 4 x 300 |
| SPA 064D | 26,9 | 39,6 | 122,0 | 10880 | 16 | 23,7 | 22* | 42 | 83 | 4 x 400 |
| SPA 074D | 43,5 | 64,1 | 145,5 | 23200 | 28 | 28,6 | 22* | 54 | 89 | 4 x 500 |
| SPA 084D | 51,6 | 76,1 | 216,9 | 21080 | 26 | 41,0 | 28** | 54 | 89 | 4 x 500 |
| SPA 065D | 34,1 | 50,4 | 152,4 | 13600 | 18 | 28,9 | 22* | 54 | 84 | 5 x 400 |
