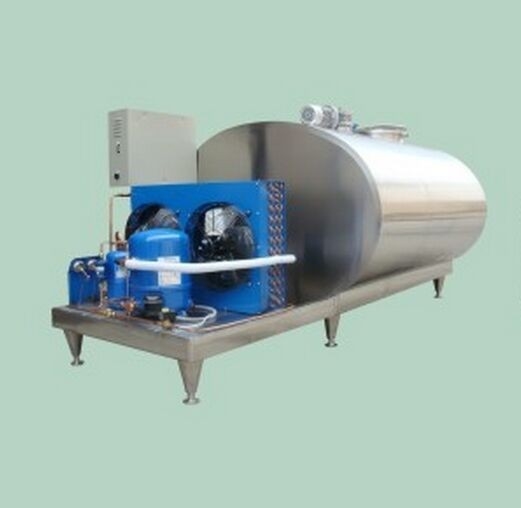

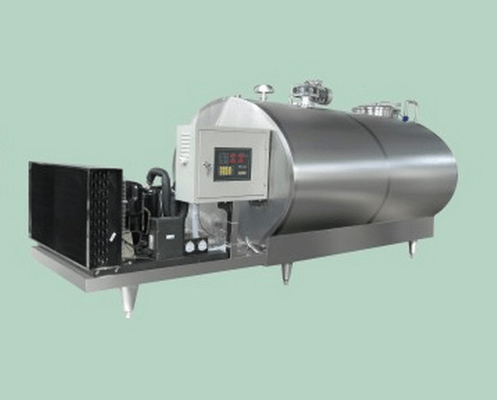

Refrigerated Horizontal 304 Stainless Steel Tanks for Fresh Milk Cooling and Storage Insulation Cooler
Product Details:
| Place of Origin: | Shanghai |
| Brand Name: | JOY |
| Certification: | ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customized |
| Delivery Time: | 1 month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets/month |
|
Detail Information |
|||
| High Light: | stainless steel mixing tanks,stainless steel milk tank |
||
|---|---|---|---|
Product Description
Refrigerated Horizontal 304 Stainless Fresh Milk Cooling Tanks, Storage Insulation Cooler Tank
Specifications:
1. The tank wall use advanced dimple pad as evaporator exchange the heat directly with the milk inside.
2. The refrigeration compressor is imported from France, which composed of full closed compressor and imported expanding valve and electromagnetism valve. The system has reliable midpoint protection device to protect the compressor being burned resulted from the overloading or system trouble.
3. All of SUS 304 or 316L stainless steel, with CIP, cleaning ball and Auto-stirring system.
4. With high insulation by PU.
|
TECHNICAL |
|
Model |
Diameter(L) |
Rating power(kw) |
Refrigeration |
External size |
Total weight |
|
CZLG-500 |
500 |
3.6 |
7380 |
1750×1150×1300 |
242 |
|
CZLG -1 |
1000 |
4.4 |
9280 |
1950×1350×1450 |
285 |
|
CZLG -2 |
2000 |
6.7 |
15820 |
3950×1550×1750 |
460 |
|
CZLG -3 |
3000 |
9 |
19534 |
3500×1650×1850 |
645 |
|
CZLG -5 |
5000 |
13.6 |
31640 |
4000×2050×2150 |
645 |
|
CZLG -8 |
8000 |
19.6 |
47460 |
4700×2300×2400 |
1450 |
Applications:
Mainly used for cool and storage for fresh milk, also can be used to cooling or storage for other liquid product. The cooling tank is the key equipment for the mechanical milking system in the dairy farms. Also widely used in the manual milking farm and milk collection centers, and milk production plants, which can keep the fresh milk at best state and prevent the bacterial growing.
Products Series:
[ EXTRACTION TANK ] [ STORAGE TANK ] [ STORAGE TANK ] [ JACKETED TANK ] [ HIGH-SPEED EMULSIFICATION TANK ] [ HIGH-SPEED MIXING (SHEARING) TANK ] [ POUND OF MILK TANK ] [ MIKE TANK ] [ FERMENT GROWING TANK AND FERMENTATION TANK ] [ LARGE OUTDOOR TANKS ] [ FRESH MILK COOLING TANK ] [ MIKE TANKER ] [ SERVING TANK ] [ FERMENTING TANK ]
Best Refrigerated horizontalStainless steel 304 fresh Milk fast directly cooling storage insulation cooler tankfor farm and milk
Our Stainless steel 304 fresh Milk fast directly cooling storage insulation cooler tank detail:
<1> Cooling speed :meet ISO5708 2BΙΙ
<2> Compressor:Copeland-compliant scroll compressor.
<3> tank body:SUS304, One time pressing seam of end.radii of arc ≥30mm.
<4> Compressor and tank body can be separated installed.
<5> Insulation layer:60-80mm.temperature rise less than 2 celsius within 24 hours.
<6> evaporator:dimple jacket which.has longer life .ususlly 2 or 3 times longer than nomal one.
<7> electrical control box:water resistant,electric shock proof, wrong manipulation proof
<8> optional unit:
1. Auto-washer system:You can set different washing programs like Cold water,hot water,warm water rinse,also alkaline or acid recirculation and it will auto carry out you programs on time.
2. Electronic computation system to measure milk weight precision 0.001.data can be print out with printer.
