Stainless Steel Welded Pipe Without Hole For Supporting Tube / Decoration / Filtration
Product Details:
| Place of Origin: | China |
| Brand Name: | FWD Pipe |
| Certification: | ISO9000-2008 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200m |
|---|---|
| Price: | Price:USD$2-7/METER |
| Packaging Details: | Plastic and Belt |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 4000m |
|
Detail Information |
|||
| Thickness: | 0.3MM-3.5MM | Material: | SS304 SS201 SS202 SS316 |
|---|---|---|---|
| Diameter: | 8mm-160mm | Tolerance: | +/- 0.05mm |
| Welding Type: | Argon Welding | Length: | Custimozed |
| High Light: | stainless steel woven wire mesh,Plain Weave Stainless Steel Wire Mesh |
||
Product Description

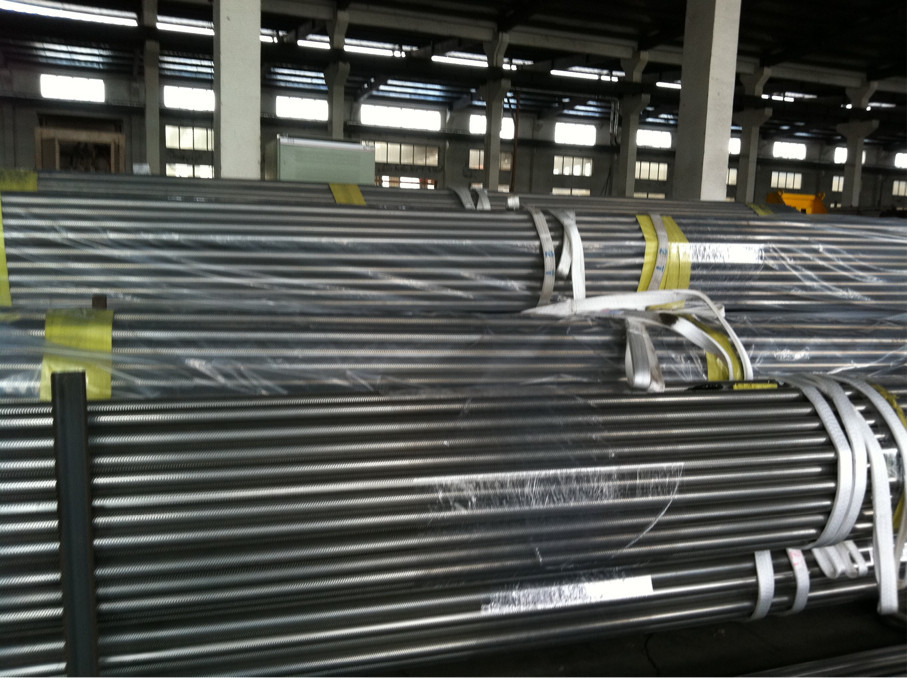

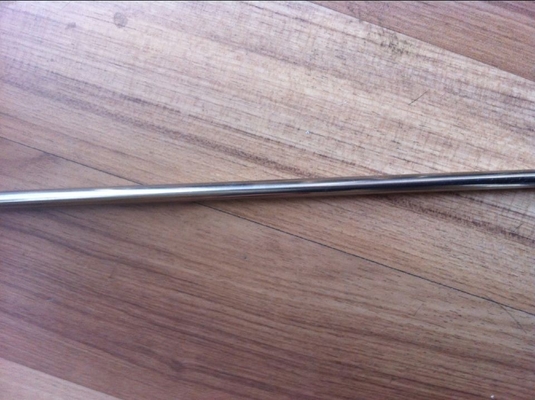

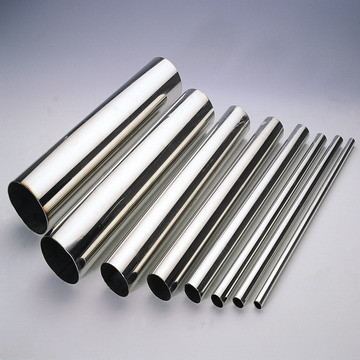

Stainless Steel Welded Pipe Without Hole For Supporting Tube / Decoration / Filtration
We can produce Stainless steel pipe.Material:ss201 ss202 ss304 ss316 ss409 and so on!
Diameter:15mm-120mm
Thickness:0.3-3mm
We can guarantee the round and length.
It is main application: Protection industry ,Supporting Industry, Filter industry!
American Standard | Austenitic Steel: |
TP304,TP304L,TP304H,TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, | |
TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… | |
Duplex Steel : | |
S32101,S32205,S31803,S32304,S32750, S32760 | |
Others:TP405,TP409, TP410, TP430, TP439,... | |
European Standard | 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, |
1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 | |
Russia Standard | 08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б, |
10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т, | |
12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, |
Chemical Composition:
Grade | Chemical Composition(%) | Remark | |||||||||
C≤ | Mn≤ | P≤ | S≤ | Si≤ | Cr | Ni | Mo | N | Cu | ||
304 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 18.0~20.0 | 8.0~10.50 |
| 0~0.1 |
|
|
304L | 0.030 | 2.00 | 0.045 | 0.030 | 0.75 | 18.0~20.0 | 8.0~12.0 |
| 0~0.1 |
|
|
310S | 0.08 | 2.00 | 0.045 | 0.030 | 1.50 | 24.0~26.0 | 19.0~22.0 |
|
|
|
|
321 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 17.0~19.0 | 9.0~12.0 |
| 0~0.1 |
| Ti≥5×(C+N),≤0.70 |
316 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 16.0~18.0 | 10.0~14.0 | 2.0~3.0 | 0~0.1 |
|
|
316L | 0.030 | 2.00 | 0.045 | 0.030 | 0.75 | 16.0~18.0 | 10.0~14.0 | 2.0~3.0 | 0~0.1 |
|
|
317 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 18.0~20.0 | 11.0~15.0 | 3.0~4.0 | 0~0.1 |
|
|
317L | 0.030 | 2.00 | 0.045 | 0.030 | 0.75 | 18.0~20.0 | 11.0~15.0 | 3.0~4.0 | 0~0.1 |
|
|
Applications:
Industry | Applications |
| Industry | Applications | ||
Thermal Power Station | Condensers | Paper / Pulp | Industrial Equipments | |||
Nuclear Power Staition | Condensers | Engineering | Machineries Instrumentation Tubing | |||
Chemical | Heat Exchanger, Pressure Vessels | Sugar | Evaporators, Condensers, Driers | |||
Petrochemical Industry | Condensers, Heat Exchanger | Automobiles | Muffler Tubes, Hydraulic Tubing,Exaust Pipes, Bracket Tubes | |||
Refineries | General Piping | Architectural Construction | Construction | |||
Fertilizers | Pressure Vessels | Phamaceuticals, Diary, Food, Beverages | Machineries Process Piping | |||
Product-- | Welding Stainless Steel Tubes |
| ||||
Size-- | 6mm-101.6mm x 0.3mm – 2.5mm |
| ||||
Standard-- | ASTM A249 /A269 |
| ||||
Delivery Condition-- | Bright Annealing Or Depends On the Customer |
| ||||
Certificate-- | ISO 9001-2008, Manufacture License Of Pressure Tube |
| ||||
Specifications:
1)Product Name: Welding Stainless Steel Tubes |
2)Standard: ASTM A249 /A269 |
3)Material Grade: TP304,TP304L,TP304H,TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, |
4)Outer Diameter:6mm-101.6mm |
5)Wall Thickness:0.3mm – 2.5mm |
6)Length:Depends on Customers’ Request |
7)Tolerance:According to ASTM A249 /A269 And ASTM A1016 |
8)Leakage Test:ET Or Hydraulic Test Or Air Pressure Test Under Water |
9)Main process:Welding, Annealing |
10)Certificate:ISO 9001:2008, Manufacture License Of Pressure Pipe |
11)Marking:Brand, Standard, Grade, Size, Length and Heat No. Or Depends On Customer. |
12)Packing:Bundles With Plastic Bags, Wooden Box With Angle Steel Frame Or others |
13)Payment Terms:T/T, L/C at sight |
14)Delivery Time:Generally 15Days – 45Days Or Depends on the quantity and Customers’ Request |
15)Capacity:1000 Tons Per Month |
If you are interested in our productions,please contact me!
