TPU Pneumatic Air Tube 98A / 95A Hardness -0.2bar - 12bar For Pneumatic Automation System
Product Details:
| Place of Origin: | Ningbo China(Mainland) |
| Brand Name: | FLUIDAC or OEM |
| Certification: | ISO9001 |
| Model Number: | PU8x5-100M-BU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 piece |
|---|---|
| Price: | USD10-- |
| Packaging Details: | Boxes, Cartons,Wooden cases,Pallets |
| Delivery Time: | Within 20 days after receiving payment or deposit |
| Payment Terms: | TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal |
| Supply Ability: | 80000 Meters Per month |
|
Detail Information |
|||
| Inch Size Out Dia: | 1/8”,5/32”,1/4”,5/16”,3/8”,1/2” | Outer Dia. Metric Size: | 3mm,4mm,5mm,6mm,8mm,10mm,12mm,14mm,16mm |
|---|---|---|---|
| Anti-UV Class: | Up To 3.5 | Applications: | Air Compressor|hardware Tools|agriculture|landscape Irrigation |
| Colours: | Yellow|Red|White|Black | Hardness: | 95A,98A |
| Material: | TPU | Product Material: | Air And Water Tube |
| High Light: | Pneumatic Air Hose,Pneumatic Plastic Pipe |
||
Product Description

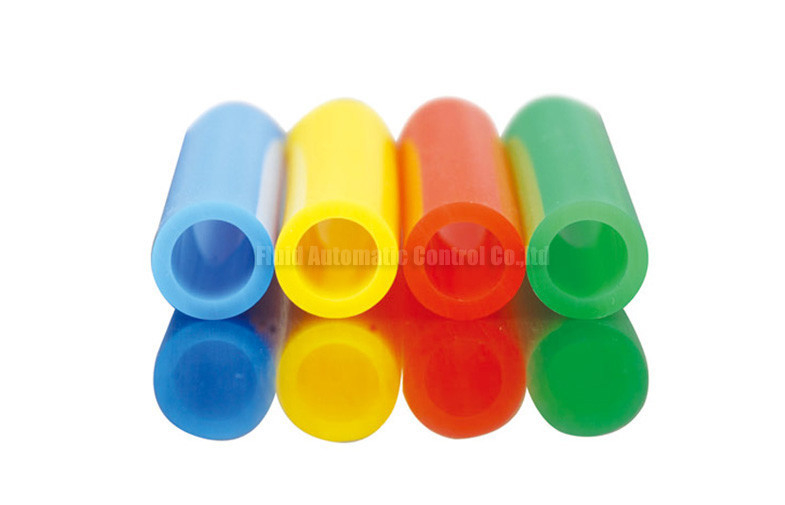

TPU Pneumatic Air Tube 98A / 95A Hardness -0.2bar - 12bar For Pneumatic Automation System
High Flexible TPU Polyester, Polyether air and water tube hardness 95/98A O.D size.3mm,4mm,5mm,6mm,8mm,10mm,12mm,14mm,16mm e.g PU8x5-100M-BU/ inch size Out Dia.1/8”,5/32”,1/4”,5/16”,3/8”,1/2” with various tube colours for option
Quick Detail:
* tPU series air hose and water tube
* Thermoplastic Polyurethane polyester and polyether material
* hardness 95A,98A
* outer Dia. Metric size 3mm,4mm,5mm,6mm, 8mm, 10mm,12mm, 14mm,16mm
* inch size Out Dia.1/8”,5/32”,1/4”,5/16”,3/8”,1/2”
* conform to ROHS environment protection requirement
* high flexibility for piping working
* small bending radius,applicable for occasions of big bending
* superior anti-vibration,anti-corrosion,anti-weather,anti-Chemical and anti-oil
* outstanding anti-weater,anti-curve and anti-fatigue
* wide applicable range of tempeature
* various tube colours for option make it easier to distinguish pipes one another
* anti-UV class reach up to 3.5,maintain the colour even in outdoor application
* low absorb rate,low physical performance deterioration and low changeable rate of measurement
* non-toxic,tastless
* polyether with property of good hdrolyzing resistance, fungus resistance
Tag: Thermoplastic Polyurethane Tube,PU tube,Pneumatic Air hose
Applications:
TPU Air hose and water tube used widely in industrial area like automotive,textile,air compressor,painting,welding,hardware tools, agriculture, Food,medicine,civil engineering,farming industrial, landscape irrigation, electronic industrial etc
Specifications:
|
ORDERING CODE |
|
|
|
|
PU |
8x5 |
100M |
BU |
|
Type |
O.Dx I.D Metric Size And Inch Szie |
Meters Per Roll |
Colours |
|
PU:TPU Tube |
3x2 |
200M/ROLL |
BU:BLUE |
|
4x2.5 |
|||
|
5x3 |
|||
|
6x4 |
B:BLACK |
||
|
8x5 |
100M/ROLL |
||
|
8x5.5 |
|||
|
8x6 |
R:RED |
||
|
10x6.5 |
|||
|
10x7 |
|||
|
10x8 |
Y:YELLOW |
||
|
12x8 |
|||
|
14x10 |
|||
|
16x12 |
T:TRANSPARENT |
||
|
1/8" |
200M/ROLL |
||
|
5/32" |
G:GREEN |
||
|
1/4" |
|||
|
5/16" |
100M/ROLL |
TBU:BLUE TRANSPARENT |
|
|
3/8" |
|||
|
1/2" |
|||
SPECIFICATION
1,Material: Thermoplastic Polyurethane
2,Working Fluids:Air,water,oil
3,Working Pressure:-0.2bar~12bar
4,Working Temperature:-20~80℃
|
MODEL NO |
O.D |
I.D |
Tolerance (mm) |
THICKNESS (mm) |
BURSTING PRESSURE (BAR) |
WORKING PRESSURE (BAR) |
BENDING RADIUS (mm) |
KGS/PC |
PCS/CARTPM |
VOLUME |
|
PU3X2/200M |
3 |
2 |
0.1 |
0.5 |
30 |
10 |
8 |
1.4 |
10 |
0.09 |
|
PU4×2.5/200M |
4 |
2.5 |
0.1 |
0.75 |
30 |
10 |
10 |
1.9 |
10 |
0.09 |
|
PU5X3/200M |
5 |
3 |
0.1 |
1 |
30 |
10 |
8 |
|
6 |
0.09 |
|
PU6×4/200M |
6 |
4 |
0.1 |
1 |
30 |
10 |
15 |
3.9 |
6 |
0.09 |
|
PU8×5/100M |
8 |
5 |
0.1 |
1.5 |
30 |
10 |
20 |
3.7 |
6 |
0.09 |
|
PU8×5.5/100M |
8 |
5.5 |
0.1 |
1.25 |
24 |
8 |
20 |
3.3 |
6 |
0.09 |
|
PU8×6/100M* |
8 |
6 |
0.1 |
1 |
18 |
6 |
30 |
2.8 |
6 |
0.09 |
|
PU10×6.5/100M |
10 |
6.5 |
0.12 |
1.75 |
30 |
10 |
30 |
5.6 |
4 |
0.09 |
|
PU10×7/100M* |
10 |
7 |
0.12 |
1.5 |
24 |
8 |
32 |
5.1 |
4 |
0.09 |
|
PU10×8/100M* |
10 |
8 |
0.12 |
1 |
18 |
6 |
35 |
3.6 |
4 |
0.09 |
|
PU12×8/100M |
12 |
8 |
0.15 |
2 |
30 |
10 |
35 |
7.8 |
4 |
0.12 |
|
PU12×9/100M* |
12 |
9 |
0.15 |
1.5 |
18 |
6 |
40 |
6.2 |
4 |
0.12 |
|
PU16×12/100M |
16 |
12 |
0.15 |
2 |
24 |
8 |
40 |
11 |
2 |
0.12 |
|
PU1/8-200M |
3.2 |
2 |
0.1 |
0.6 |
30 |
10 |
8 |
1.58 |
10 |
0.09 |
|
PU5/32-200M |
4 |
2.5 |
0.1 |
0.75 |
30 |
10 |
10 |
1.9 |
10 |
0.09 |
|
PU1/4-200M |
6.35 |
4.57 |
0.1 |
0.9 |
30 |
10 |
15 |
3.9 |
6 |
0.09 |
|
PU5/16-100M |
8 |
5 |
0.15 |
1.5 |
30 |
10 |
20 |
3.7 |
6 |
0.09 |
|
PU3/8-100M |
9.6 |
6.5 |
0.12 |
1.5 |
21 |
7 |
30 |
4.8 |
4 |
0.09 |
|
PU1/2-100M |
12.6 |
9.6 |
0.15 |
1.5 |
21 |
7 |
40 |
6.6 |
4 |
0.12 |
