Construction Cold Drawn 304 S.S. Pipe / ASTM A213 OR JIS 3459 Steel Tube
Product Details:
| Place of Origin: | China |
| Brand Name: | zhuxin |
| Certification: | CE,ISO9000 |
Payment & Shipping Terms:
| Price: | Negotiable |
|---|---|
| Packaging Details: | Seaworthy package |
| Delivery Time: | 15-40days |
| Payment Terms: | TT/LC |
| Supply Ability: | 3,500MT/month |
|
Detail Information |
|||
| High Light: | large diameter steel pipe,seamless stainless steel pipe |
||
|---|---|---|---|
Product Description

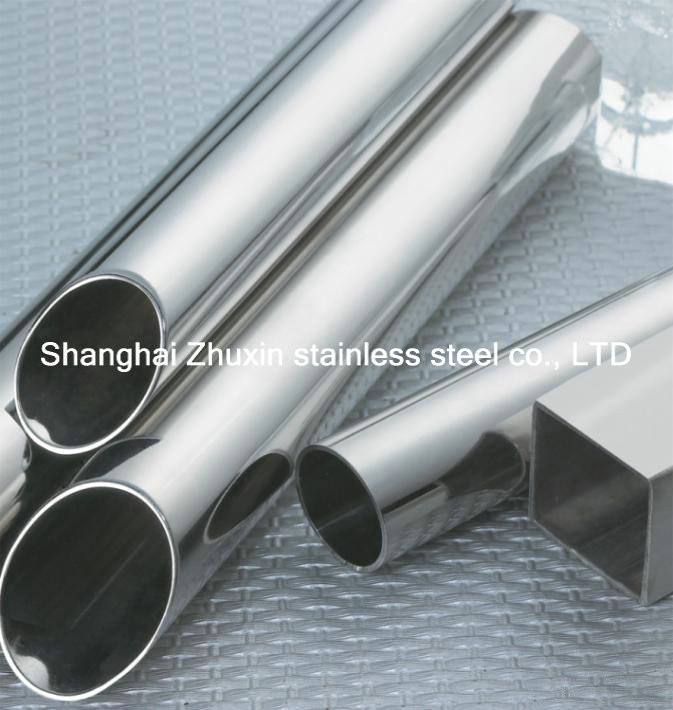

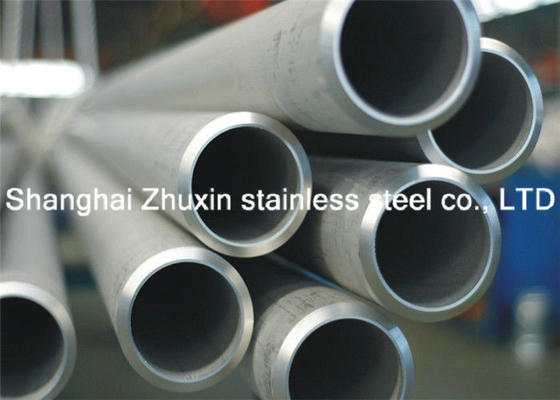

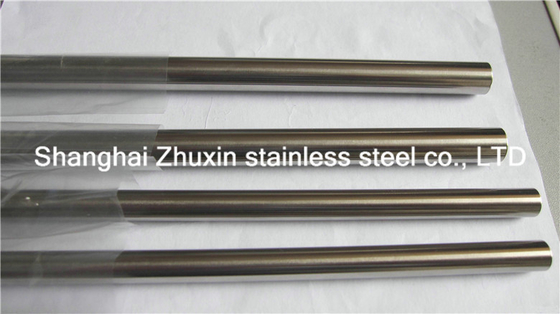

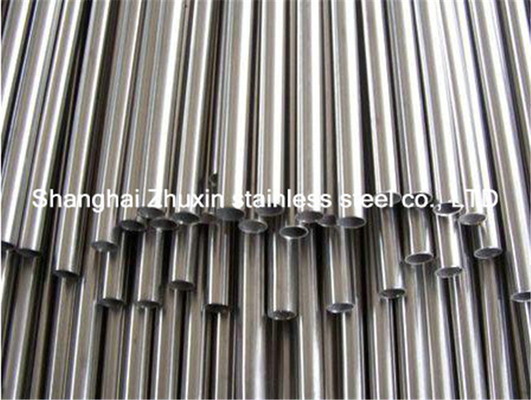

Construction Cold Drawn 304 Stainless Steel Pipe / ASTM A213 JIS 3459 Steel Tube
Quick Detail:
1. Commodity: Cold Drawn 304 stainless steel tube
2. Brand: JISCO, LISCO, TISCO
3. Grade: 304
4. Certification: ISO,SGS BV
5. Surface: Annealed & Pickled, Bright Annealed,Polished or as requested
6. Thickness: 1mm-3.5mm
7. Outer Diameter: 10mm-27mm
8. Length: 2-12m or as customer request
9. Standard: ASTM A554/A270/A312/A249/A269 ETC
Specifications
|
Name |
Cold Drawn 304L stainless steel tube |
|
Standard |
ASTM A554/A270/A312/A249/A269 ETC |
|
Material Grade |
AISI 201, 202, 304, 304L, 316, 316L and 430 |
|
Outer Diameter |
10mm--57mm |
|
Wall Thickness |
1mm - 5mm |
|
Length |
2-12m or as customer request |
|
Tolerance |
a) Outer Diameter: +/- 0.2mm |
|
b) Thickness: +/- 10% OR as customer request |
|
|
c) Length: +/- 10mm |
|
|
Surface |
Satin / Hairline :180#, 320# |
|
Polish : 400# ,600# ,800# or Mirror surface |
|
|
Application |
Engineering,machine,construction,industrial material |
|
MOQ |
1Tons |
|
Productivity |
6000T/W |
|
PACKING |
In bundles or according to requirements of customers |
|
Delivery |
7-25 days |
Applications:
Chemical industry, architecture, petro chemical industry, chemical fertilizer production, food industry, boiler heat exchangers, natural gas industry, pharmaceutics, warter transfer, environmental protection and construction and building area.
Regular size
| Outer Diameter (mm) | Wall Thickness (mm) | Outer Diameter (mm) | Wall Thickness (mm) |
| 32 | 2.0 | 45 | 2.5 |
| 32 | 2.5 | 45 | 3.0 |
| 32 | 3.0 | 45 | 3.5 |
| 32 | 3.5 | 45 | 4.0 |
| 32 | 4.0 | 48 | 3.0 |
| 38 | 2.0 | 48 | 4.0 |
| 38 | 2.5 | 51 | 3.0 |
| 38 | 3.0 | 51 | 3.5 |
| 38 | 3.5 | 51 | 4.0 |
| 38 | 4.0 | 57 | 3.0 |
| 42 | 3.0 | 57 | 3.0 |
| 42 | 3.5 | 57 | 3.5 |
| 42 | 4.0 | 57 | 4.0 |
| 57 | 8.0 | 57 | 5.0 |
Technical Requirement
|
TYPE NO. |
C |
Mn |
P |
S |
Si |
Cr |
Ni |
|
|
% |
% |
% |
% |
% |
% |
% |
|
201 |
≤ 0.15 |
5.5-7.5 |
≤ 0.050 |
≤ 0.03 |
≤ 1.00 |
16.0-18.0 |
3.5-5.5 |
|
202 |
≤ 0.15 |
7.5-10 |
≤ 0.060 |
≤ 0.03 |
≤ 1.00 |
17.0-19.0 |
4.0-6.0 |
|
301 |
≤ 0.15 |
≤ 2 |
≤ 0.045 |
≤ 0.03 |
≤ 1.00 |
16.5-18.0 |
6.0-8.0 |
|
302 |
≤ 0.15 |
≤ 2 |
≤ 0.045 |
≤ 0.03 |
≤ 1.00 |
17.0-19.0 |
8.0-10.0 |
|
304 |
≤ 0.08 |
≤ 2 |
≤ 0.045 |
≤ 0.03 |
≤ 1.00 |
18.0-20.0 |
8.0-10.5 |
|
304L |
≤ 0.03 |
≤ 2 |
≤ 0.045 |
≤ 0.03 |
≤ 1.00 |
18.0-20.0 |
8.0-12.0 |
|
316 |
≤ 0.08 |
≤ 2 |
≤ 0.045 |
≤ 0.03 |
≤ 1.00 |
16.0-18.0 |
10.0-14.0 |
|
316L |
≤ 0.03 |
≤ 2 |
≤ 0.045 |
≤ 0.03 |
≤ 1.00 |
16.0-18.0 |
10.0-14.0 |
|
321 |
≤ 0.08 |
≤ 2 |
≤ 0.045 |
≤ 0.03 |
≤ 1.00 |
17.0-19.0 |
9.0-12.0 |
|
410 |
≤ 0.15 |
≤ 1.00 |
≤ 0.040 |
≤ 0.03 |
≤ 1.00 |
11.5-13.5 |
|
|
430 |
≤ 0.12 |
≤ 1.00 |
≤ 0.040 |
≤ 0.03 |
≤ 1.00 |
16.0-18.0 |
|
Mechanical Properties
|
TYPE NO. |
Y.S |
T.S. |
ELOG. |
hardness |
||
|
|
N/mm2 |
N/mm2 |
% |
HB |
HRB |
HV |
|
301 |
≥ 205 |
≥ 520 |
≥ 40 |
≤ 207 |
≤ 95 |
≤ 218 |
|
304 |
≥ 205 |
≥ 520 |
≥ 40 |
≤ 187 |
≤ 90 |
≤ 200 |
|
304L |
≥ 175 |
≥ 480 |
≥ 40 |
≤ 187 |
≤ 90 |
≤ 200 |
|
316 |
≥ 205 |
≥ 520 |
≥ 40 |
≤ 187 |
≤ 90 |
≤ 200 |
|
316L |
≥ 175 |
≥ 480 |
≥ 40 |
≤ 187 |
≤ 90 |
≤ 200 |
|
321 |
≥ 205 |
≥ 520 |
≥ 40 |
≤ 187 |
≤ 90 |
≤ 200 |
|
410 |
≥ 205 |
≥ 440 |
≥ 20 |
≤ 201 |
≤ 93 |
≤ 210 |
|
430 |
≥ 205 |
≥ 450 |
≥ 22 |
≤ 183 |
≤ 88 |
≤ 200 |
Packing:
Plastic bags in bundles or wooden cases or as required
|
Standard |
GB/T14976-2002 |
ASTM A213 |
JIS 3459 |
|
GB/T14975-2002 |
ASTM A312 |
JIS 3463 |
|
|
GB13296-91 |
ASTM A358 |
DIN 2462 |
|
|
GB/T9948-2006 |
ASTM A789 |
DIN 17458 |
|
|
GB5310-95 |
ASTM A790 |
DIN 17456 |
|
|
201(1Cr17Mn6Ni5N) |
6*1-2 |
32*3-10 |
114*5-20 |
|
202(1Cr18Mn8Ni5N) |
8*1-2 |
34*3-10 |
133*5-20 |
|
301(1Cr17Ni7) |
10*1-3 |
45*3-12 |
159*5-25 |
|
304(0Cr18Ni9) |
12*1-3 |
46*3-12 |
168*5-25 |
|
304L(00Cr19Ni10) |
14*2-4 |
48*3-12 |
219*5-30 |
|
310S(0Cr25Ni20) |
16*2-4 |
51-3-12 |
273*6-30 |
|
316(00Cr17Ni12Mo2) |
18*2-4 |
57*3-15 |
325*8-30 |
|
316L(00Cr17Ni14Mo2) |
20*2-5 |
60*3-15 |
351*8-30 |
|
321(1Cr18Ni10Ti) |
22*2-6 |
64*3-15 |
377*8-30 |
|
410(1Cr13) |
25*2-6 |
76*3-18 |
426*10-30 |
|
420(2Cr13) |
27*3-6 |
89*4-20 |
480*12-30 |
|
430(1Cr17) |
28*3-6 |
108*4-25 |
530*12-30 |
Description:
304 stainless steel welded steel pipe or 304 stainless steel welded pipe.Commonly used stainless steel plate or steel strip after crimp units and dies made of stainless steel welded pipe welding.304 stainless steel welded pipe production process is simple,efficient production,more specifications,the investment for equipment is less.But the general strength is lower than stainless steel seamless steel tube.
1) ISO9001:2008 certified company.
2) Quality & Quantity Assurance with competitive prices.
3) Delivery & dealings as per Commitment.
4) Highly experience qualified production and sales team.
5) Your satisfaction is guaranteed according your demands.
