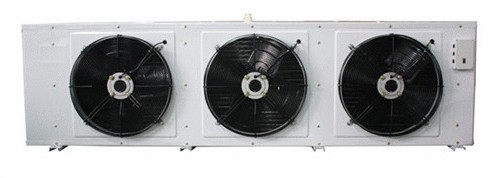

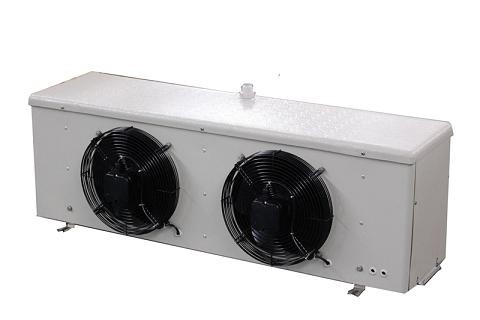

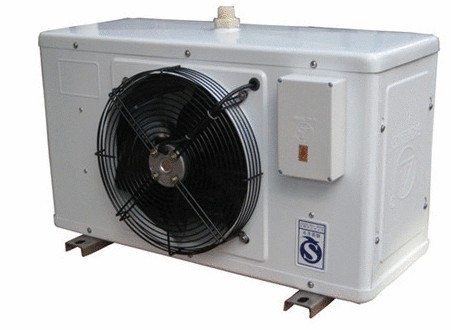

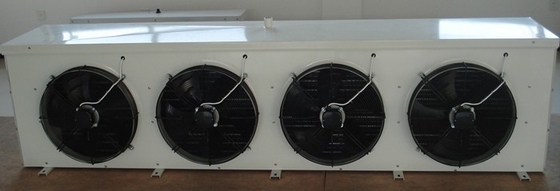

D Series Air Cooled Copper Tube Aluminium Fin Refrigeration Evaporator for Cold Room

D Series Air Cooled Copper Tube Aluminium Fin Refrigeration Evaporator for Cold Room

Product Details:

Place of Origin: china
Brand Name: Starcold
Certification: CE,UL
Model Number: DL,DD,DJ

Payment & Shipping Terms:

Minimum Order Quantity: 5PCS
Price: USD100~500/PC FOB
Packaging Details: Wooden cases
Delivery Time: 10-25days
Payment Terms: TT , LC
Supply Ability: 1000pcs per month
Get Best Price Contact Now

Detail Information

Product Description

Starcold D Series Air Cooled copper tube refrigeration evaporator for cold room



D series air cooled evaporator is one kind of storage cooling equipment part . According to applicable temperature , there are 3 different series : DL,DD, DJ .

DL for around 0°C, DD for ~-18°C, DJ for temperature below -25°C rooms.



All of our D series evaporators are with defrost heaters and double water receiver .



 This series products features:

  1. Cabinet of steel plate with plastic spray, corrosion proof and pleasant looking.
  2. Mechanically expanded pipes with AL fins with good transfer performance.
  3. Inside are evenly arranged with defrosting heater.
  4. The bottom has double water receivers, effective for anti-freezing.
  5. Long distance air throw is optional.
  6. Fin space : 4.5mm , 6.0mm ,9.0mm
  7. Model
    Capacity Δt=10℃
    Cooling Area
    Inlet Outlet
    Fan Motor
    Defrost Heater
    Air Flow
    Qty
    OD
    Voltage
    Power
    Distance
    Coil
    Water Tray
    W
    M²
    mm
    M³/h
    PC
    mm
    V
    W
    m
    W
    W
    DL-2/10
    2000
    10
    12x14
    1170
    1
    300
    220
    75
    8
    500
    500
    DL-3/15
    3000
    15
    12x14
    2340
    2
    300
    220
    2×75
    8
    900
    900
    DL-4.3/20
    4260
    20
    12x16
    2340
    2
    300
    220
    2×75
    8
    900
    900
    DL-5.3/25
    5325
    25
    12x16
    3510
    3
    300
    220
    3×75
    8
    1200
    1200
    DL-8.4/40
    8400
    40
    16x25
    6800
    2
    400
    220
    2×180
    10
    1300
    1300
    DL-12/55
    11550
    55
    16x25
    6800
    2
    400
    220
    2×180
    10
    1500
    1500
    DL-17/80
    16800
    80
    19x28
    12000
    2
    500
    220
    2×550
    15
    2400
    1200
    DL-23/105
    23200
    105
    19x32
    12000
    2
    500
    220
    2×550
    15
    3600
    1200
    DL-28/125
    27600
    125
    19x35
    18000
    3
    500
    220
    3×550
    15
    4800
    1600
    DL-35/160
    34640
    160
    19x38
    18000
    3
    500
    220
    3×550
    15
    5100
    1700
    DL-40/185
    40320
    185
    25x42
    24000
    4
    500
    220
    4×550
    15
    6000
    2000
    DL-46/210
    46080
    210
    25x42
    24000
    4
    500
    220
    4×550
    15
    6600
    2200
    DL-52/260
    52000
    260
    25x50
    24000
    4
    500
    220
    4×550
    15
    8800
    2200
    DL-66/330
    66000
    330
    25x50
    32000
    4
    550
    220
    4×550
    15
    11000
    2200
    DL-82/410
    82000
    410
    25x50
    40000
    4
    600
    220
    4×1100
    20
    11000
    2200
    DL-94/470
    94000
    470
    25x54
    42000
    3
    700
    220
    3×2200
    20
    19200
    2400
    DL-116/580
    116000
    580
    28x54
    42000
    3
    700
    220
    3×2200
    20
    20800
    2600

    Fin Space: 6mm
    Model
    Capacity Δt=10℃
    Cooling Area
    Inlet Outlet
    Fan Motor
    Defrost Heater
    Air Flow
    Qty
    OD
    Voltage
    Power
    Distance
    Coil
    Water Tray
    W
    M²
    mm
    M³/h
    N
    mm
    V
    W
    m
    W
    W
    DD-1.4/7
    1425
    7
    12x14
    1170
    1
    300
    220
    75
    8
    1000
    500
    DD-2.2/12
    2220
    12
    12x14
    2340
    2
    300
    220
    2×75
    8
    900
    900
    DD-3.0/15
    2960
    15
    12x16
    2340
    2
    300
    220
    2×75
    8
    1800
    900
    DD-4.1/22
    4070
    22
    12x16
    3510
    3
    300
    220
    3×75
    8
    2400
    1200
    DD-5.6/30
    5920
    30
    16x25
    6800
    2
    400
    220
    2×180
    10
    2600
    1300
    DD-8.0/40
    7955
    40
    16x25
    6800
    2
    400
    220
    2×180
    10
    3000
    1500
    DD-11/60
    11100
    60
    19x28
    12000
    2
    500
    220
    2×550
    15
    3600
    1200
    DD-16/80
    16280
    80
    19x32
    12000
    2
    500
    220
    2×550
    15
    6000
    1200
    DD-19/100
    19425
    100
    19x35
    18000
    3
    500
    220
    3×550
    15
    8000
    1600
    DD-24/120
    24420
    120
    19x38
    18000
    3
    500
    220
    3×550
    15
    8500
    1700
    DD-29/140
    28490
    140
    25x42
    24000
    4
    500
    220
    4×550
    15
    10000
    2000
    DD-33/160
    32560
    160
    25x42
    24000
    4
    500
    220
    4×550
    15
    11000
    2200
    DD-37/200
    37000
    200
    25x50
