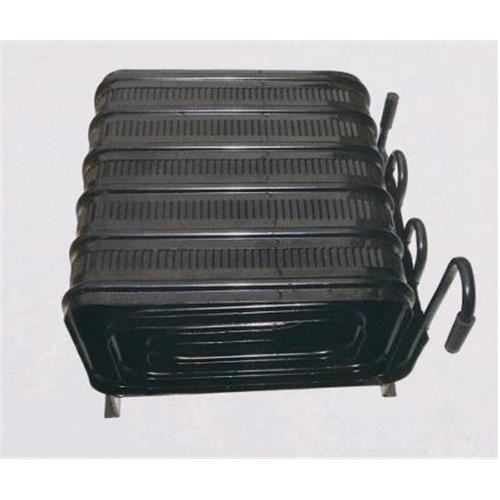

Non - corrosion 7mm, 8mm evaporator coils tube, Condenser Tubes for liquid converying, evaporator

Features:
1) Production Standard :ASTM A269;Enterprise Standard
2) Material of commonly used stainless steel:TP304, TP316L; Material of other stainless steel: TP304L
3) Product applications and applicable field: refrigerating equipment, evaporators, gas/liquid conveying, condensers, beverage machinery
4)General product status at delivery: semi-hard status/bright annealing soft status
5) Specification range:outer diameter:6mm-19mm;
6)  Annual production capacity: 600 tons

Note: We aslo have had a history of producing stainless steel tube in coil for well over a dozen years and we have two lines for the production of continuous weldingpipes. On the basis of complete equipment and leading technology, the company has aslo introduced world first-class brigt annealing technology, which makes it possible to conduct stainless steel pipe online softening treatment. Besides, we aslo have testing & inspecting facilities for flattening, tube end expansion, cold benging as well as for hardness, tensile and 100% airtightness tests. With reliable quality ang reasonable prices, 80% of our coil pipe products are exported to countries all over the world.

 Coil Pipe Technical Parameters Set By The Manufacturer:

1) Stainless Steel Pipe Measurement Range:outer diameter: 6-19mm; wall thickness: 0.41-1.5mm; the measurement tolerance as per ASTM A269

2) The outer diameter of the coil pipe>500mm; the inner diameter of the coil pipe<1000mm

3) The height of the coil pipe:200mm-400mm

4) Max.length of each coil:<1000M min.length of each coil:>6m

5) General delivery length:200m-800m

6) Physical properties of bright-annealed coil pipe:A. ratio of elongation no less than 55%   B. surface hardness no greater 170HV  C. tensile strength no less than 550N/MM2  D. yield strength no less than 220N/MM2   E. bending angke>1800; mon.bending radius<1.5*pipe diameter

7) Physical properties of general coil pipe (without bright annealing):A. ratio of elongation no less than 35%  B. surface hardness greater than 180HV   C. tensile strength>600N/MM2  D. yield strength>280N/MM2   E.bending angle>900; bending radius>2*pipe diameter

8) Pressure resistance property:take 8*0.5*c coil pipe as an example, the work pressure to be borne by the inner wall is no less than 60BAR
