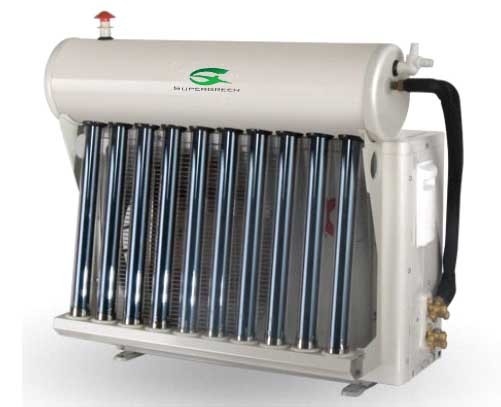

18000 btu Vacuum Thermal Split Wall Mounted Solar powered Air Conditioning system Solar Air Conditioner
Product Details:
| Place of Origin: | China |
| Brand Name: | Supergreen |
| Certification: | CE |
| Model Number: | KFR-9000BTU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 30 days |
| Payment Terms: | TT.LC.Western Union |
| Supply Ability: | 10000/month |
|
Detail Information |
|||
| High Light: | Renewable Energy Air Conditioner,Solar Air Conditioning,Hybrid Solar air Conditioner |
||
|---|---|---|---|
Product Description
18000 btu Vacuum Thermal Split Wall Mounted Solar powered Air Conditioning system Solar Air Conditioner
How Supergreen Hybrid Solar Air Conditioner works
hybrid solar air-conditioner is driven by electricity and with solar energy as an auxiliary power.
The two kinds of energy work complementally in accordance with principles of fluid dynamics. It
combines the absorption working system with compression system by using
environmental-friendly media in cooling and heating on the basis of traditional air-conditioner
technology to achieve energy-saving and environment protection.
Features:
1. Excellent Energy saving | |||
| 2. Super silence | |||
| 3. International famous compressor brand . | |||
| 4. Golden fin for evaporator and condensor | |||
| 5.100% Copper Connection Pipes With Insulation | |||
| 6.Enviornmently Friendly Gas R410A | |||
| 7.Chongqing excellent energy enterprise |
Specifications
| Model No. | TKF(R)-26GW | TKF(R)-35GW | TKF(R)-60GW | TKF(R)-76GW | |||
| Power Supply:220-240VAC, 1PH, 50Hz | |||||||
| Performance | |||||||
| Capacity | Cooling | Btu/h | 9000 | 12000 | 20500 | 26000 | |
| W | 2600 | 3500 | 6000 | 7600 | |||
| Heating | Btu/h | 10000 | 13000 | 22000 | 27000 | ||
| W | 2900 | 3800 | 6600 | 7900 | |||
| Noise | Indoor | dB(A) | ≤40 | ≤42 | ≤46 | ≤50 | |
| Outdoor | dB(A) | ≤50 | ≤52 | ≤56 | ≤58 | ||
| Air Circulation | m³/h | 500 | 550 | 850 | 1150 | ||
| Suitable Area | m² | 11~17 | 15~23 | 25~42 | 30~48 | ||
| EER | W/W | 3.64 | 3.89 | 3.89 | 3.86 | ||
| Btu/h/w | 12.42 | 13.27 | 13.24 | 13.03 | |||
| Power Consumption | |||||||
| Power Input | Cooling | W | 650~770 | 800~1025 | 1350~1560 | 1700~1900 | |
| Heating | W | 650~780+350 | 800~1050+350 | 1350~1590+350 | 1700~1950+350 | ||
| Rated Current | Cooling | A | 3.00~3.60 | 3.70~4.80 | 6.30~7.30 | 8.00~8.90 | |
| Heating | A | 3.00~3.65+1.6 | 3.70~4.90+1.6 | 6.30~7.50+1.6 | 8.00~8.90+1.6 | ||
| Vacuum Tube | Diameter*Length*Pcs | 47mm*500mm*10 | 47mm*500mm*10 | 47mm*620mm*11 | 47mm*620mm*11 | ||
| Dimensions | |||||||
| Indoor Unit | Net | mm | 802*265*190 | 880×286×203 | 940×300×220 | 1080*220*300 | |
| Shipping | mm | 860*325*255 | 935×350×270 | 1003×360×280 | 1136*285*360 | ||
| Outdoor Unit | Net | mm | 790*260*540 | 790*260*540 | 850*300*755 | 940*300*755 | |
| Shipping | mm | 910*370*610 | 910*370*610 | 950*410*760 | 990*400*770 | ||
| Water Tank | Shipping | mm | 910*400*330 | 910*400*330 | 980*400*370 | 980*400*370 | |
| Vacuum Tube | Shipping | mm | |||||
| Weight | |||||||
| Indoor Unit | Net/Gross | kg | 9/10.5 | 10/11.5 | 16/17.5 | 20/22 | |
| Outdoor Unit | Net/Gross | kg | 31/34 | 38/40 | 50/52 | 55/58 | |
| Solar Collector | Net/Gross | kg | 13/15 | 13/15 | 16/17 | 16/17 | |
| Loading Qty | in 20feet | sets | 64 | 64 | 48 | 45 | |
| 40HQ | sets | 160 | 160 | 120 | 110 | ||
