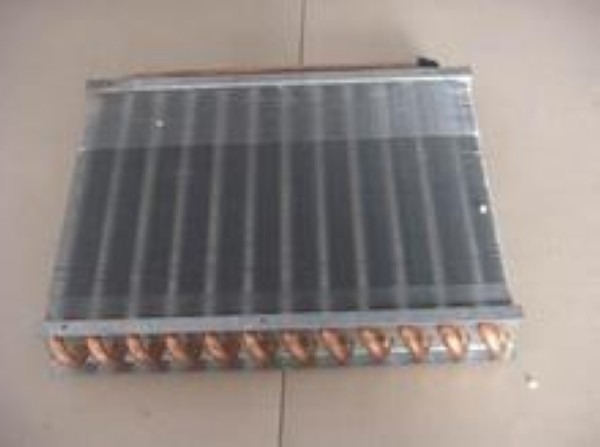

7.94mm Dia High Efficiency Copper Tube Blue Fin Small Refrigerator Evaporator Air Conditioning Evaporator Coil
Product Details:
| Place of Origin: | Shanghai, China (Mainland) |
| Brand Name: | shenglin |
| Certification: | other |
| Model Number: | FP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 Unit/Units |
|---|---|
| Price: | US $ 30 - 3,000 / Unit |
| Packaging Details: | customerized packing |
| Delivery Time: | 35 days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 5000 Unit/Units per Month |
|
Detail Information |
|||
| High Light: | Air Conditioning Evaporator Coil,evaporator,High Efficiency Copper Tube |
||
|---|---|---|---|
Product Description
Specifications
1.Evaporator
2.OEM Service with Competitive Price
3.Low Power Consumption
4.Tube Diameter:7,7.94,9.52,12.75,
5.Customized
Specifications
1) Sophisticated technology, elegant appearance
2) Excellent performance, easy to clean
3) Specification diverse, easy install
4) Waterways hidden anti-scald design. The front and back surface temperature is low, to prevent burns family.
5) Modular combination, to facilitate change, a variety of specifications available.
6) Unique conduction, radiation, convection three kinds of heat transfer mode,
enhanced heat dissipation
7) Short space heating, saving heating costs
Application:
Item | Evaporator Type | Operation medium | Operation pressure (MPa) | Application |
1 | Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin | Cold/hot water | ≤1.6 | Used for combined air handling unit, fan coil etc air conditioning devices |
2 | Φ18/Φ20 Steel pipe winding with steel sheet | Steam | ≤0.2 | Used for combined air handling unit, fan coil etc air conditioning devices |
3 | Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin | Brine | ≤1.6 | Used for heat transfer in cold storage and all kinds of low temperature systems |
4 | Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin | Ethylene glycol | ≤1.6 | Used of energy recovery and low temperature system devices |
5 | Φ16 Copper tube with aluminium fin | Ice mud | ≤1.6 | Used for dry operation condition, fresh air dehumidification etc systems |
6 | Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin | R22 | ≤1.9 | Used for industry and commerce air conditioning system |
7 | Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin | R407C | ≤1.9 | Used for industry and commerce air conditioning system |
8 | Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin | R134a | ≤3.1 | Used for vehicle and vessel etc transportation devices |
Fin Types
Fin Pattern | Copper Tube O.D. (mm) | Row Space (mm) | Hole Space (mm) | Fin Thickness (mm) | Fin Space(mm) | ||||
Flat fin | Sine wave with blade fin | Smooth sine wave fin | Window fin | Sesamoid fin | |||||
A | 7 | 12.7 | 21 | 0.105 | / | / | 1.3 | 1.3 | / |
B | 7 | 13.2 | 17.6 | 0.105 | / | / | 1.3 | 1.3 | / |
C | 7 | 12.7 | 20.4 | 0.105 | / | / | 1.3~1.8 | 1.3~1.8 | / |
D | 7 | 12.7 | 19.05 | 0.105 | / | / | 1.3~1.8 | 1.3~1.8 | / |
E | 7.94 | 15.88 | 25.4 | 0.105 | 1.8~3.0 | 1.8~3.0 | 1.8~3.0 | 1.8~3.0 | / |
E | 7.94 | 19.05 | 22 | 0.105~0.13 | 1.4~3.0 | 1.4~3.0 | 1.4~3.0 | 1.4~3.0 | / |
F | 9.52 | 22 | 25.4 | 0.105~0.15 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | / |
G | 9.52 | 22 | 25.4 | 0.18~0.4 | 3.5~6.35 | / | / | / | / |
H | 9.52 | 21.65 | 25 | 0.105~0.18 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | / |
I | 9.52 | 21.65 | 25 | 0.15~0.24 | 3.2~6.35 | 3.2~6.35 | 3.2~6.35 | / | / |
J | 12.75 | 27.5 | 31.75 | 0.115~0.15 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.6~3.2 |
K | 15.88 | 33 | 38.1 | 0.115~0.15 | 1.5~4.0 | 1.5~4.0 | 1.5~4.0 | / | / |
L | 15.88 | 34.64 | 40 | 0.115~0.15 | / | 2.6~3.5 | 2.6~3.5 | / | / |
Description of common materials of this Coil
•Fin plate: optical aluminum foil, hydrophilic aluminum foil, black hydrophilic
aluminum foil and copper foil;
•Heat exchange tube: Purple copper pipe with internal screws, purple copper-based optical tube and copper-nickel alloy tube;
•Connector pipe: purple copper pipe and seamless steel pipe;
•Connection pipe: purple copper pipe, brass pipe and seamless steel pipe;
•Sheet metal: aluminum plate, galvanized steel plate, stainless steel plate and
embossed aluminum plate;
•Special treatment: spraying and coating, anodic oxidation and electrophor
We are a professional heat exchanger, condenser, evaporator,heat pump,air cooler
and air conditionermanufacturer in China,which has more than 15 years experience in HVAC area. Our products have been exported
to Europe,USA, Japan and Middle east etc.
