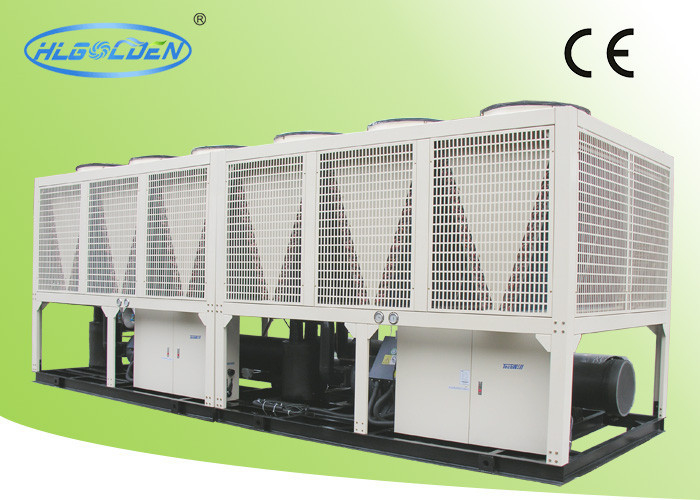

Eletronic Evaporator Air Source Heat pump Chiller with Shell Heat Exchanger
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | GOLDEN |
| Certification: | CE |
| Model Number: | HLWH-210SH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 10 working days after received your payment |
| Payment Terms: | T/T, Western Union, L/C, MoneyGram |
| Supply Ability: | 500pcs per month |
|
Detail Information |
|||
| Product Name: | Water Heat Pump | Application: | Indoor |
|---|---|---|---|
| Cooling Capacity: | 208kw | Power Supply: | 380v-50hz-3ph |
| Heating Capacity: | 224kw | Refrigeration: | R410A |
| Standard: | CE | Type: | Free Standing |
| Compressor: | Hitachi/Daikin | ||
| High Light: | Water Cooling Chiller,Drinking Water Chiller |
||
Product Description
Eletronic Evaporator Air Source Heat pump Chiller with Shell Heat Exchanger
Description:
• Water sourced design make sure high efficiency through using wasted or ground water
• Save energy for global environment
• Cooling capacity:208KW
• Heating capacity:224KW
• Heating recovery capacity:62KW
• Double shell tube type heat exchanger
• Working source side outlet water temperature range:-10℃ to 35℃
• Max outlet water temperature: 60℃ when heating
• Min outlet water temperature: 8℃ when cooling.
• Five working mode are changeable.
• Copeland scroll compressor
• R410A R22 R407 refrigerant
Specifications:
| Model HLWH～ | 210S | ||
| 210SH | |||
Rated Cooling Capacity |
Cooling Capacity (KW) | 208 | |
| Comp. Input Power (KW) | 63.2 | ||
Rated Heating Capacity |
Heating Capacity (KW) | 224 | |
| Comp. Input Power (KW) | 59.6 | ||
| Refrigerant | R22 | ||
| Power Supply | 380V/ 3ph/ 50Hz | ||
| Safety Protection | Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection. |
||
| Number of Refrigeration Circuit | 1 | ||
| Capacity Control (%) | 0, 50, 75, 100 | ||
| Refrigerant Charge (Kg) | 56 | ||
| Air Cooled Heat Exchanger | Ripple Aluminum Fins Around Copper Pipe | ||
Water Cooled Heat Exchanger
Water Cooled Heat Exchanger |
Dia.of Pipe (inch) | 3" | |
Water Side Max Pressure (MPa) |
1 | ||
| Chilled Water Flow(m3/h) | 35.7 | ||
| Water Pressure Drop (kPa) | 48 | ||
| Flow of Hot Water(m3/h) | 38.4 | ||
| Axial Fan | Air Flow×1000m3/h | 113.6 | |
| Power×Qty (KW) | 1.2×8 | ||
Low noise and weight
| Running Noise dB(A) | 75 | ||
| Total Weight (Kg) | 2940 | ||
| Running Weight(Kg) | 3160 | ||
Heat Recovery
| Refrigerant Charge (Kg) | 54 | ||
| Heat Reclaimed Volume (KW) | 62 | ||
Heat Recovery |
Dia.of Pipe (inch) | 1-1/2" | |
| Water Side Max Pressure (MPa) | 1 | ||
| Reclaimed Water Flow (m3/h) | 10.7 | ||
| Water Pressure drop (kPa) | 27 | ||
| Total Weight (Kg) | 3180 | ||
| Running Weight(Kg) | 3450 | ||
Main Export Markets:
- Eastern Europe
- North America
- Mid East/Africa
- Central/South America
- Asia
- Western Europe
- Australasia
Standard Using Environment Notes
• High efficiency intube type heat exchanger, factory insulated with flexible close cell material.
• Copper tube connection with charge, filter drier, gas-liquid separator, high and low pressure switch.
• Rated Cooling Capacity Based on: DB Temperature 35℃/WB Temperature 24℃
• Chilled water inlet/outlet temp. 12℃/7℃, Fouling factor: 0.088㎡.°C/KW.
• Rated Cooling Capacity Based on: DB Temperature 7℃/WB Temperature 6℃
• Hot water inlet/outlet temp. 40℃/45℃; Hot water range: 45℃～45℃;
• Chilled Water Range: 5～20℃; Lowest Ambient Temperature: -5℃～43℃;
• Heat recovery unit water in/out temperadture: 50℃/55℃;
