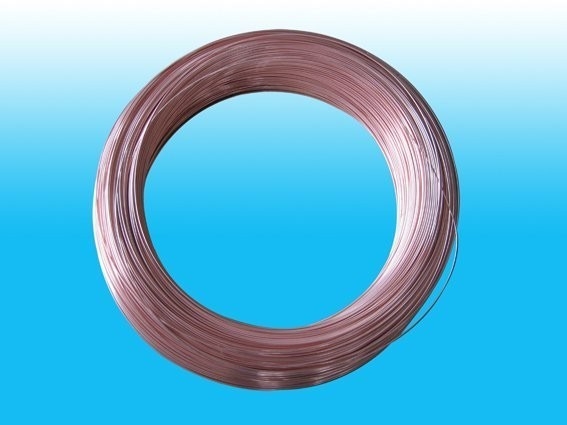

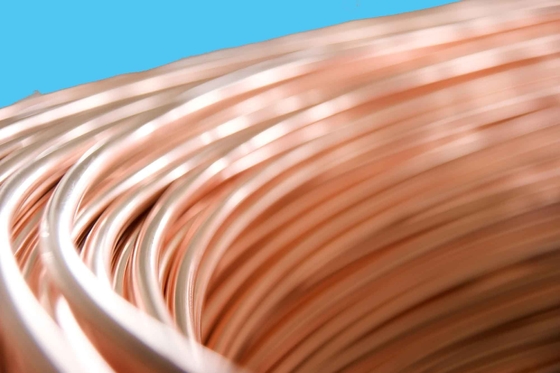

Low Carbon Cold Drawn Welded Tubes 4.76 * 0.65 mm , GB/T 24187-2009
Product Details:
| Place of Origin: | Changzhou ,China |
| Brand Name: | wushun |
| Certification: | ISO9001,ISO14001 |
| Model Number: | 4.76*0.65mm |
| Outer Diameter: | 4.76mm |
|---|---|
| Wall Thickness: | 0.65mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 TON |
|---|---|
| Packaging Details: | Plastic cloth coil,wooden box,iron pallet,iron box |
| Delivery Time: | According to quantity about order |
| Payment Terms: | T.T ,L/C, D/P, O/A etc |
| Supply Ability: | 30000TON each year |
|
Detail Information |
|||
| High Light: | welded steel pipe,galvanized steel pipe |
||
|---|---|---|---|
Product Description
Low Carbon Cold Drawn Welded Tubes 4.76 * 0.65 mm , GB/T 24187-2009
features:soft and easy to bend
elongation:more than 25%
outer diameter:4.76mm
wall thickness: 0.65mm
low carbon steel strip
Specifications:
|
specification |
dimensional tolerance |
Mechanical properties |
|||
|
Diameter tolerance |
Wall thickness tolerance |
tensile strength |
yield strength |
elongation |
|
|
low carbon weld tube 4.76*0.65mm |
±0.08 |
±0.08 |
≥290Mpa |
≥180Mpa |
≥25% |
Competitive Advantage:
normaly including plain ,copper coated outside ,copper coated two sides and zn coated ,hot galvanized steel tube etc .size is complete until OD more than 10mm ,quality is strictly according country standard , price is competitve .The products have been export to the Middle of East.
1.Materials: low carbon steel strip
2.Main use: widely used in wire-tube condenser, evaporators, refrigeration, chiller, heaters, freezer etc
3.outer diameter:4.76mm
4.wall thickness: 0.65mm
5. standard: GB/T 24187-2009
6.certification:also passed ISO9001 quality attestation system and ISO14001 Certificate of Enviroment Management System
7.surface treatment: copper coated, zn coated,no coating etc
8. Features: soft and easy to bend
9.tensile strength: more than 290 Mpa
10.yield strength:more than 180 Mpa
11.elongation:more than 25%
12. place of origin: changzhou city, jiangsu province, China.
13. port of loading:shanghai, China;
14. package:plastic cloth with coils, wooden boxes, iron pallets etc
15. delivery:as contract
16. supply ability:30000 ton per year
17. brand:WUSHUN
Applications:
Single wall steel tube is important part of refrigeration system ,mainly used in refrigerator, freezer ,condenser, evaporator etc.
