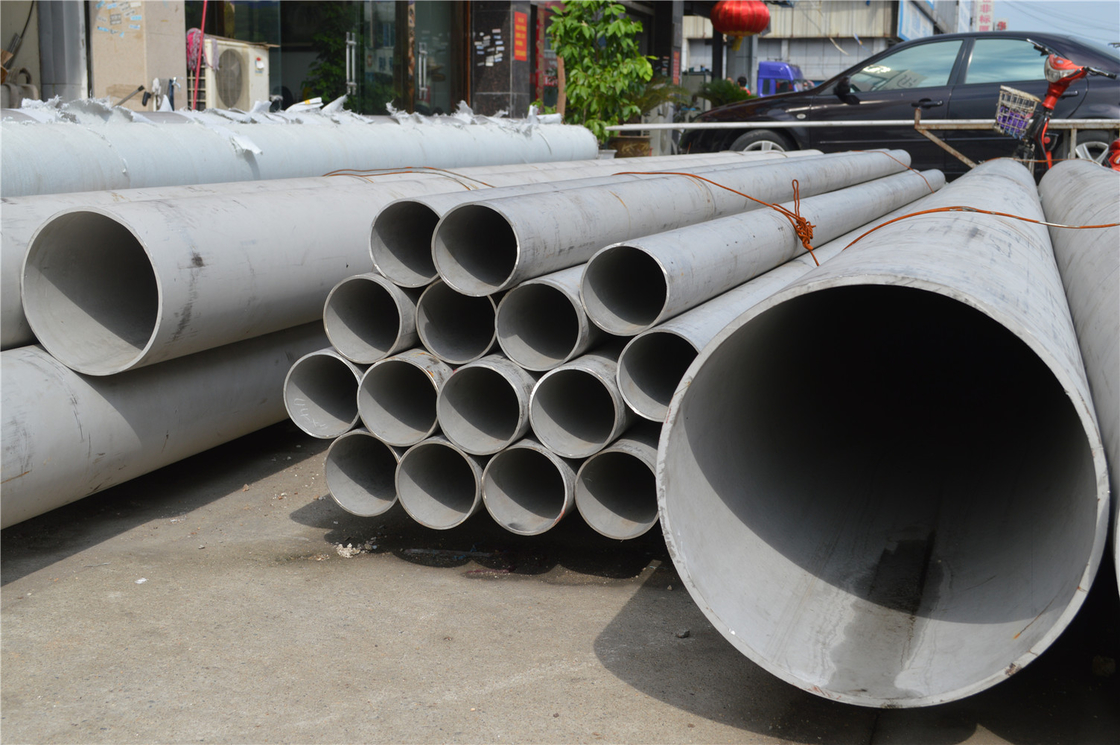

HL BA Cold Drawn Stainless Steel Pipes A312 316L 310S with 0.9mm to 25mm Thickness
Product Details:
| Place of Origin: | China(Mainland) |
| Brand Name: | SX STEEL |
| Certification: | SGS,ISO,BV,CE |
| Model Number: | 200,300,400 series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 tons |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Export standard package :bundled wooden box or be required |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C T/T Western Union |
| Supply Ability: | 1000 Ton/Tons / Week |
|
Detail Information |
|||
| High Light: | Stainless Steel Welded Pipe,polished stainless steel pipe |
||
|---|---|---|---|
Product Description
HL BA Cold Drawn Stainless Steel Pipes A312 316L 310S with 0.9mm to 25mm Thickness
Quick Detail:
| Name | Stainless steel pipe | Brand Name | SX |
| WT | 0.5mm-50mm | Feature | High quality |
| Grade | 200,300,400 series | Certificate | SGS,ISO,BV,CE |
Description:
1. Grade: 201,202,304,304L,316,317L,309S,430,904L ect
2. Thickness: 0.5mm-50.0mm
3. OD: 5.0mm-720mm
4. Standard: JIS, AISI, GB ect
5. Packing: Standard export packing.
6. Payment terms: T/T or L/C
Applications:
1) Building materials, which including elevators, inside and outside decoration materials of buildings, windows, doors and heaters.
2) Structure tubes and drainpipe in industrial field.
3) Chemical equipments, boilers, tanks, chemical industrial furnaces, chemical equipment parts.
4) Other application: such as processing plants, anything with high hardness.
Specifications:
| Name | Stainless Steel pipe | ||||
| Standard | ASTM,AISI,JIS,EN,GB,DIN etc | ||||
| Material Grade |
201 ( Ni 0.8%), 202 (Ni 3.5%~4.5%), 301(Ni 5%) 304 (Ni 8%, Cr 18%), 316 (Ni 10%, Cr 18%), 316L (Ni10%~14%), |
||||
| Outer Diameter | 6mm--730mm | ||||
| Thickness | 0.5mm - 50.0mm | ||||
| Length | 6m or as customers' request | ||||
|
Tolerance |
a) Outer Diameter: +/- 0.2mm | ||||
| b) Thickness: +/- 0.02mm | |||||
| c) Length: +/- 5mm | |||||
| Surface |
180G, 320G, 400G Satin / Hairline 400G, 500G, 600G or 800G Mirror finish |
||||
| Application | Decoration construction, upholstery, industry instrument | ||||
| Test | Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT | ||||
|
Mechanical Property |
Material Item | 201 | 202 | 304 | 316 |
| Tensile Strength | ≥535 | ≥520 | ≥520 | ≥520 | |
| Yield Strength | ≥245 | ≥205 | ≥205 | ≥205 | |
| Extension | ≥30% | ≥30% | ≥35% | ≥35% | |
| Hardness (HV) | <253 | <253 | <200 | <200 | |
| Payment | Payment by T/T, 30% as advance payment and 70% balance pay before shipping. |
|
Delivery time |
A.7 days if this goods is stock goods. B.30 days if this goods will be produced after order |
| Validity | Valid time is 3 days for price usually. |
Chemical composition
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo | |
| 201 | ≤0.15 | ≤1.00 | 5.5-7.5 | ≤0.060 | ≤0.03 | 3.5-5.5 | 16.0-18.0 | ||
| 202 | ≤0.15 | ≤1.00 | 7.5-10.00 | ≤0.060 | ≤0.03 | 4.0-6.0 | 17.0-19.0 | ||
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 6.0-8.0 | 16.0-18.0 | ||
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0-10.0 | 17.0-19.0 | ||
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0-10.0 | 18.0-20.0 | ||
| 304L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 9.0-13.0 | 18.0-20.0 | ||
| 310S | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 19.0-22.0 | 24.0-26.0 | ||
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 | |
| 321 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 9.0-13.0 | 17.0-19.0 | ||
| 430 | ≤0.12 | ≤0.75 | ≤1.00 | ≤0.040 | ≤0.03 | ≤0.60 | 16.0-18.0 | ||
| 430A | ≤0.06 | ≤0.50 | ≤0.50 | ≤0.030 | ≤0.50 | ≤0.25 | 14.0-17.0 | ||
Competitive Advantage:
(1): High quality stainless steel pipes with reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Samples can be provided as your requirements.
We are professional manufacturer of stainless steel products, including decorative welded stainless steel pipes,industrial welded stainless steel pipes, special-shaped welded pipes, stainless steel
sheet and etc. Main materials are: 304, 201,202,316,316L,430 and so on.
If you are interested in our products, please feel free to contact with us, we will try our best to meet your demands.
