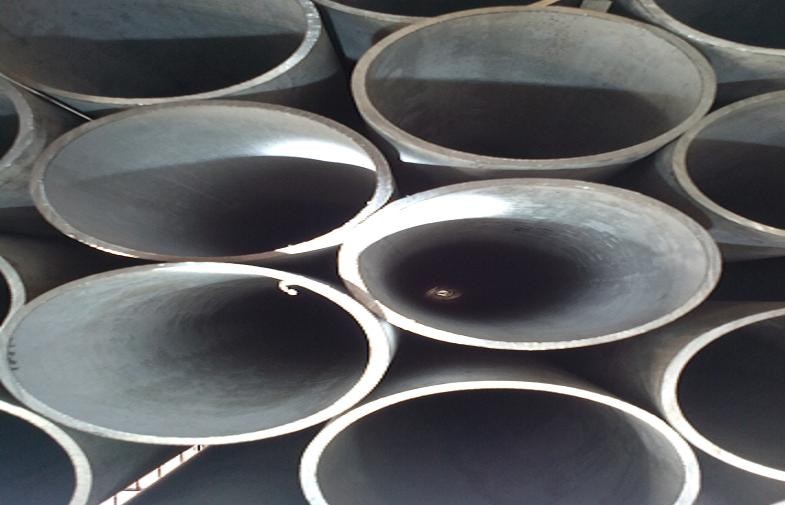

304 304L 316 316L Stainless Steel Oval Tube with Cold Drawn , 10mm*20mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Cosco Steel |
| Certification: | ISO,SGS,CQC,etc. |
| Model Number: | TP304 | TP304 | TP316L | SUS 201 | 1.4301 | 1.4541 etc |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500Kgs/ one size |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bag in bundle,Wooden box,etc. |
| Delivery Time: | 25-30 days |
| Payment Terms: | T/T, L/C at sight |
| Supply Ability: | 600Tons/Month |
|
Detail Information |
|||
| Size Of Elliptical Tube: | 10 X 20mm; 20 X 40mm; 50 X 100mm; 60 X 120mm Etc | Wall Thickness: | 3mm, 4mm, 5mm,6mm Etc |
|---|---|---|---|
| Heat Treatment Method: | Cold Finished And Annealed | Surface Of Elliptical Tube: | Pickled | 2B Finished | Mirror Polish Etc. |
| Length Of Oval Pipe: | 20feet ( 5.8 Or 6.1 Meter ); Single Random Or Double Random | ||
| High Light: | stainless steel oval tubing,Stainless Steel Oval Pipe |
||
Product Description
304 304L 316 316L Stainless Steel Oval Tube with Cold Drawn , 10mm*20mm
Quick Detail:
This elliptical steel tube,included seamless and welded,be made by round stainless steel tube. If the tube is welded elliptical steel tube,the manufacturing process of round stainless steel tube according to ASTM, DIN, GOST, like ASTM A312 / ASTM A544 / ASTM A249 etc.
Surface Finish Of Oval Steel Pipe: 2B Finish | Pickled Finished | Annealed&Pickled etc.
Size Of Oval Tube: 10 x 20mm to 80 x 160mm
Wall thickness of tube: 1.5 mm to 6 mm For Small Size
Length of tube: 3000 mm; 6000 mm; 6100mm | 10feet; 15feet; 20feet; 30feet; 35feet etc.
Description:
We can supply type of tube:
Welded Oval Tube,Welded Elliptical Tube, Welded Square Tube;
Welded Rectangular Tube, Seamless Oval Tube, Seamless Square Tube;
Seamless Stainless Elliptical Tube, Seamless Stainless Rectangulare Tube.
The Mainly Material :
SUS 201 / AISI 201 / S20100 ;
1. 4301/ SUS304/ AISI304/ S30400,
1. 4306/ SUS304L/ AISI304L/ S30403;
1. 4404/ SUS316L/ AISI316L/ S31603, etc.
Ordering Information:
It shall be the responsibility of the purchaser to specify all requirements that are necessary for products
under this specification. Such requirements to be considered included,but are not limited to,the following:
1 Quantity ( feet, meters, or number of lengths )
2 Name of material ( seamless tubes )
3 Steel Grade ( Table2 )
4 Size ( Table1 )
5 Length ( specific or random )
6 Condition ( hot finished or cold finished
Marking: Registered logo,Heat Number,Steel Grade,Standard,Size
H.S Code: 7306.4000 ( For Welded Steel Oval | Elliptical | Square | Rectangular Tube )
Applications:
This type welded Oval | Elliptical Steel tubes/pipes be used in
- Industrial fluid conveying pipes
- Mechanical structural tubes
- Walled water tubes
TABLE1 Sizes for Oval | Elliptical | Square | Rectangular Tube
Small Sizes
|
Wall Thickness
Size |
1.5 mm |
2.0 mm |
3.0 mm |
3.5 mm |
4.0 mm |
4.5 mm |
5.0 mm |
6.0 mm |
8.0 mm |
9.0 mm |
10.0 mm |
12.0 mm |
|
10x10mm 10x20mm |
√ √ |
√ √ |
× × |
× × |
× × |
× × |
× × |
× × |
× × |
× × |
× × |
× × |
|
20x20mm 20x40mm |
√ √ |
√ √ |
× √ |
× × |
× × |
× × |
× × |
× × |
× × |
× × |
× × |
× × |
|
40x40mm 40x80mm |
× × |
√ √ |
× √ |
× × |
× × |
× × |
× × |
× × |
× × |
× × |
× × |
× × |
|
50x50mm 50x100mm |
√ × |
√ √ |
√ √ |
× √ |
× × |
× × |
× × |
× × |
× × |
× × |
× × |
× × |
|
60x60mm 60x120mm |
× × |
√ √ |
√ √ |
√ √ |
√ √ |
√ √ |
√ √ |
× × |
× × |
× × |
× × |
× × |
|
80x80mm 80x160mm |
× × |
× × |
√ √ |
√ √ |
√ √ |
√ √ |
√ √ |
× √ |
× × |
× × |
× × |
× × |
Specification:( For Welded Round Pipe )
Designation: A312/A312M-04a
Standard specifications For Seamless,Welded,and Heavily Cold Worked
Austenitic Steel Pipes
Tensile Requirements:
|
Grade |
UNS |
Tensile Strength |
Yield Strength |
Elongation in 2in. Or 50mm |
|
Designation |
Min,Ks i [ Mp a ] |
Min,Ks i [ Mp a ] |
Min, % |
|
TP304 |
S30400 |
75[515] |
30[205] |
25 |
|
TP304L |
S30403 |
70[485] |
25[170] |
25 |
|
TP316L |
S31603 |
70[485] |
25[170] |
25 |
Our advantage
- 100% Tube Hydro-static Test or Nondestructive Electric Test
- Special sizes we can produce
- Big stock raw material in warehouse
- Tensile Test for each Heat No.’s material
- 100% Annealing&Solution and Pickling
